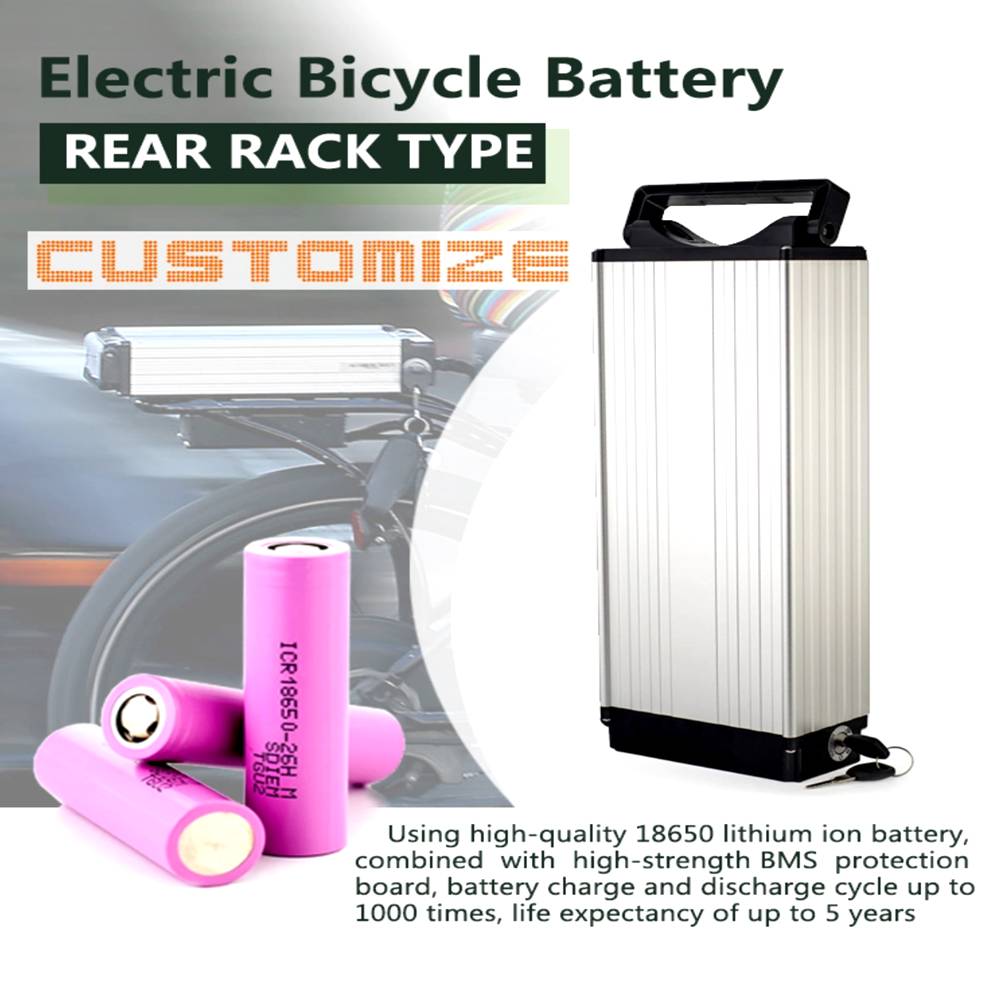

HiPOWER Rear Rack Type E-bike Battery Li-Ion 36V 10Ah 12Ah 13Ah 15Ah 16Ah 18Ah 20Ah 21Ah 23Ah 25Ah 26Ah 27Ah 28Ah 30Ah 35Ah

HiPOWER Rear Rack Type Lithium E-bike Battery Li-ion 36V 48V 52V with Customized Capacity of 10Ah 12Ah 13Ah 15Ah 16Ah 18Ah 20Ah 21Ah 23Ah 25Ah 26Ah 27Ah 28Ah 30Ah 35Ah

Specification:

HiPOWER Rear Rack Type Lithium E-Bike Battery 36V 10Ah

Model: LIRR36V10

Nominal Voltage: 36V

Nominal Capacity: 10Ah

Energy: 360Wh

Configuration: 10S5P

Charge Voltage: 42V

Charge Current: 2A-10A

Charge Time: 2.5-5.5Hrs

Charge Method: CC/CV

Charge Port: Optional

Max. Continuous Discharge Current: 20A

Discharge Cut-off Voltage: 28V

Fit Motor: ≤360W

BMS Functions: over-charge, over-discharge, over-current, short circuit, and temperature protection.

Cycle Life: 800Cycles

Dimensions: 365*150*69mm

Approx. Weight: 3.5kgs

Charge Temperature: -10℃ to 55℃ (-14F to 131F) @60±25% Relative Humidity

Discharge Temperature: -30℃ to 60℃ (-22F to 140F) @60±25% Relative Humidity

Storage Temperature: -10℃ to 45℃ (-14F to 113F) @60±25% Relative Humidity

Support OEM/ ODM Service:

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger
