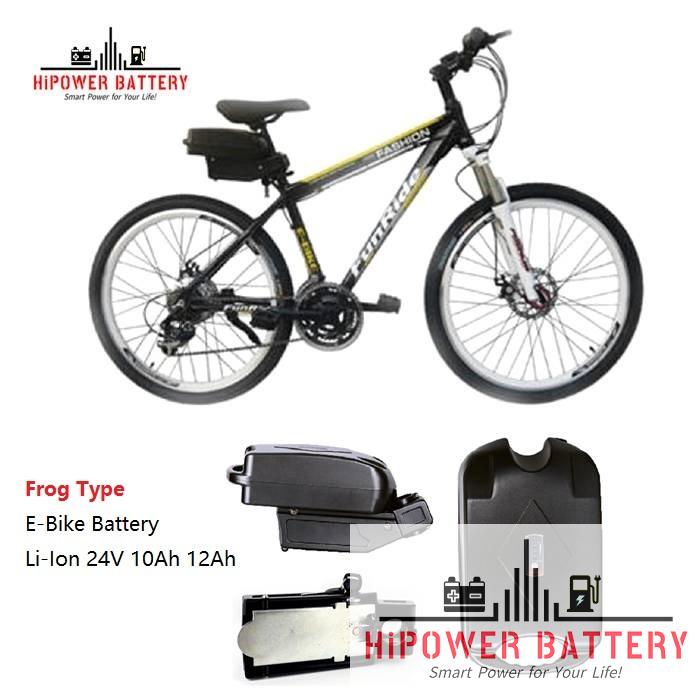

HiPOWER Frog Type E-bike Battery Li-Ion 24V 10Ah 8Ah 8.8Ah 10.4Ah 11Ah 11.6Ah 12Ah 13Ah 13.6Ah 14Ah 14.5Ah 15Ah 15.5Ah 17Ah 17.5Ah

HiPOWER Frog Type Lithium E-bike Battery Li-Ion 24V 10Ah 8Ah 8.8Ah 10.4Ah 11Ah 11.6Ah 12Ah 13Ah 13.6Ah 14Ah 14.5Ah 15Ah 15.5Ah 17Ah 17.5Ah

Specification:

HiPOWER Frog Type Lithium E-Bike Battery 24V 10Ah

Model: LIFR24V10

Nominal Voltage: 25.9V

Nominal Capacity: 10Ah

Energy: 259Wh

Configuration: 7S4P

Charge Voltage: 29.4V

Charge Current: 2A

Charge Time: 5-6Hrs

Charge Method: CC/CV

Charge Port: Optional

Max. Continuous Discharge Current: 20A

Discharge Cut-off Voltage: 19.6V

Fit Motor: ≤500W

BMS Functions: over-charge, over-discharge, over-current, short circuit, and temperature protection.

Cycle Life: 800Cycles

Dimensions: 315*150*150mm

Approx. Weight: 2.8kgs

Charge Temperature: -10℃ to 55℃ (-14F to 131F) @60±25% Relative Humidity

Discharge Temperature: -30℃ to 60℃ (-22F to 140F) @60±25% Relative Humidity

Storage Temperature: -10℃ to 45℃ (-14F to 113F) @60±25% Relative Humidity

Support OEM/ ODM Service:

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

More Standard Type E-Bike Battery Models:

Application Scenarios:

Certifications:
