HiPOWER Triangle Type E-bike Battery Li-Ion 48V 14Ah 15Ah 16Ah 17Ah 18Ah 20Ah 21Ah 23Ah 24Ah 25Ah 26Ah 27Ah 28Ah

HiPOWER Triangle Type Lithium E-bike Battery Li-ion 48V 14Ah 15Ah 16Ah 17Ah 18Ah 20Ah 21Ah 23Ah 24Ah 25Ah 26Ah 27Ah 28Ah

Specification:

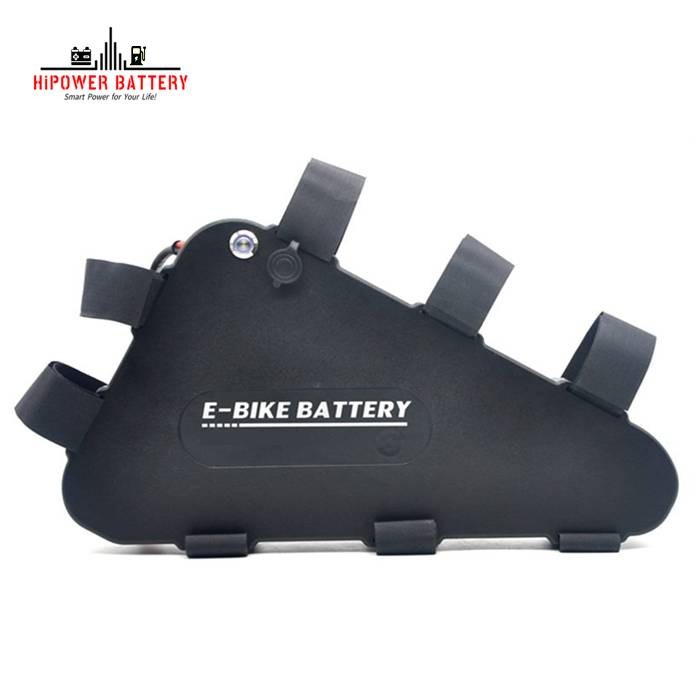

HiPOWER  Triangle Type E-bike Battery Li-Ion 48V 14Ah

Model: LITR4814

Nominal Voltage: 48V

Nominal Capacity: 14Ah

Energy: 672Wh

Configuration: 13S7P

Charge Voltage: 54.6V

Charge Current: 2-7A

Charge Time: 2.5-6Hrs

Charge Method: CC/CV

Charge Port: 4 PIN

Max. Continuous Discharge Current: 20A

Discharge Cut-off Voltage: 36.4V

Fit Motor: ≤720W

BMS Functions: over-charge, over-discharge, over-current, short circuit, and temperature protection.

Cycle Life: 800Cycles

Dimensions: 395x365x232x80mm

Approx. Weight: 5.4 kgs

Charge Temperature: -10℃ to 55℃ (-14F to 131F) @60±25% Relative Humidity

Discharge Temperature: -30℃ to 60℃ (-22F to 140F) @60±25% Relative Humidity

Storage Temperature: -10℃ to 45℃ (-14F to 113F) @60±25% Relative Humidity

Support OEM/ ODM Service:

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

More Standard Type E-Bike Battery Models:

Application Scenarios:

Certifications:
