HiPOWER Parrot No.6 Type E-bike Battery Li-Ion 36V 15Ah 12.5Ah 13Ah 14.5Ah 15.6Ah 16Ah 17Ah 18Ah 20Ah 21Ah 22Ah 24.5Ah

Model: LIPA3615
Nominal Voltage: 36V
Nominal Capacity: 15Ah
Energy: 540Wh
Configuration: 10S6P
Charge Voltage: 42V
Charge Current: 2-7.5A
Charge Time: 2.5-6Hrs
Charge Port: DC
Max. Continuous Discharge Current: 20A
Discharge Cut-off Voltage: 28V
Fit Motor: ≤720W
Cycle Life: 800Cycles
Dimensions: 370*90*113mm
Approx. Weight: 4.0kgs

EMAIL

HiPOWER Parrot No.6 Type Lithium E-bike Battery Li-ion 36V 48V 52V with

Customized Capacity of 12.5Ah 13Ah 14.5Ah 15Ah 16Ah 17Ah 18Ah 20Ah 21Ah 22Ah 24.5Ah


Specification

HiPOWER Parrot No.6 Type Lithium E-Bike Battery 36V 15Ah

Model: LIPA3615

Nominal Voltage: 36V

Nominal Capacity: 15Ah

Energy: 540Wh

Configuration: 10S6P

Charge Voltage: 42V

Charge Current: 2-7.5A

Charge Time: 2.5-6Hrs

Charge Method: CC/CV

Charge Port: DC

Max. Continuous Discharge Current: 20A

Discharge Cut-off Voltage: 28V

Fit Motor: 720W

BMS Functions: over-charge, over-discharge, over-current, short circuit, and temperature protection.

Cycle Life: 800Cycles

Dimensions: 370*90*113mm

Approx. Weight: 4.0kgs

Charge Temperature: -10 to 55 (-14F to 131F) @60±25% Relative Humidity

Discharge Temperature: -30 to 60 (-22F to 140F) @60±25% Relative Humidity

Storage Temperature: -10 to 45 (-14F to 113F) @60±25% Relative Humidity



Support OEM/ ODM Service:

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger





Parrot No.6 E-bike Battery-1.jpg


Parrot No.6 E-bike Battery-2.jpg

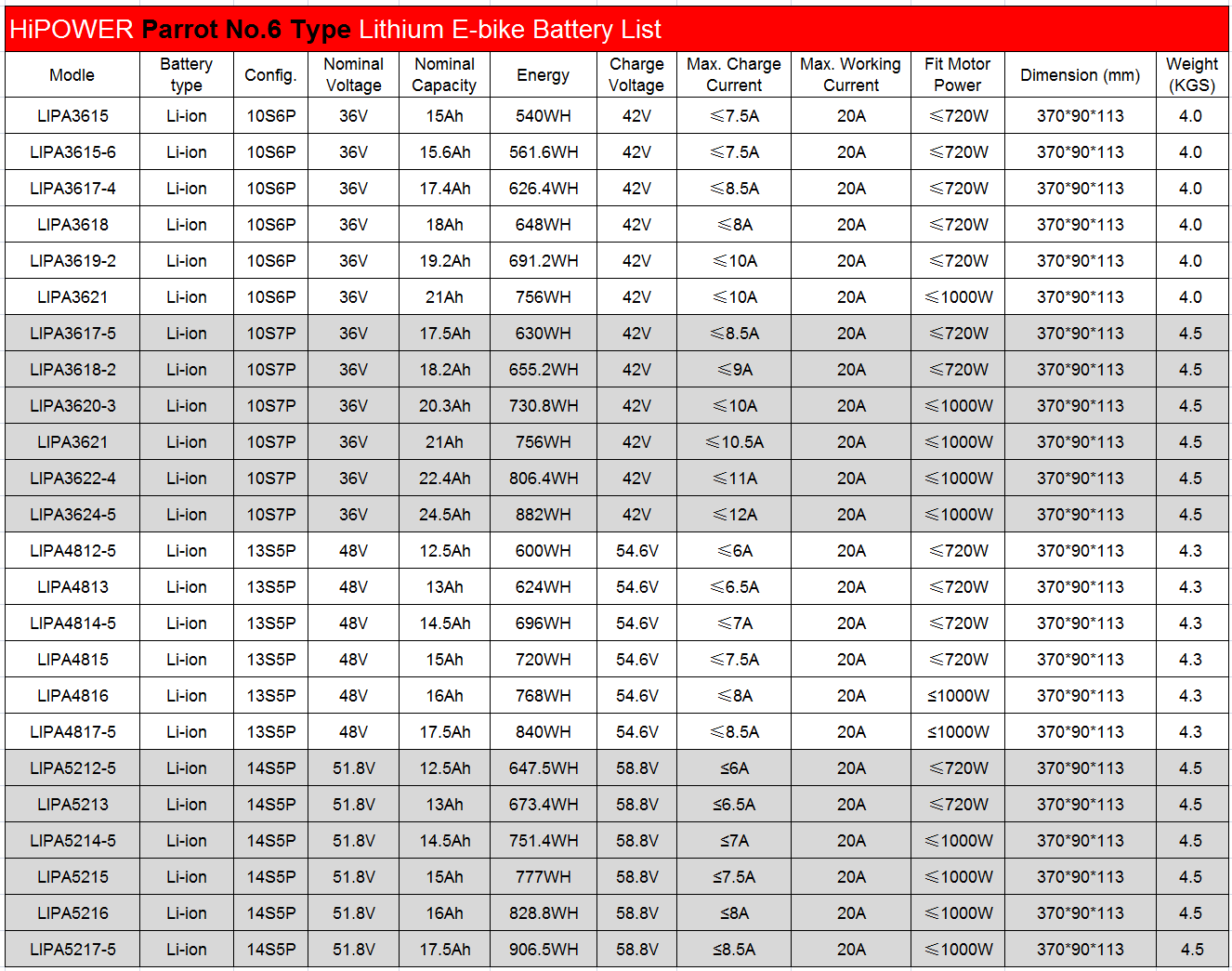

More Standard Type E-Bike Battery Models:


Application Scenarios:

HiPOWER Battery Applications.JPG

Certifications:

HiPOWER Certification.JPG



Shenzhen High Power Battery Technology Company is dedicated to the R&D, manufacturing and sales of motive power systems and energy storage systems as one-stop solutions. With more than 10 years of combined experience in manufacturing renewable energy and battery systems, HiPOWER provides Lithium Batteries covering most daily living and working fields. Our products include two main series, which are

1.   Energy Storage Batteries & Systems

LiFePO4 Battery for Lead Acid Replacement

RV/Caravan/Camper/Marine/Solar Battery

Rack-mounted Lifepo4 Battery

Wall-mounted Lifepo4 Battery

All-In-One Energy Storage System

Portable Power Station

Low Voltage Energy Storage System

High Voltage Energy Storage System

Commercial & Industrial ESS

2.   Motive Power Batteries

Golf Cart Battery

Floor Cleaner/Scrubber Battery

Forklift Battery

Aerial Work Platform Battery

E-bike Battery

E-scooter/motorcycle/tricycle Battery

Starter Battery
