HiPOWER Dorado Hidden Down Tube Type E-bike Battery Li-Ion 36V 6.6Ah 8.8Ah 10Ah 11Ah 12Ah 13Ah 14Ah 15Ah 16Ah 17Ah 18Ah 20Ah 21Ah 23Ah 25Ah 26Ah 27Ah 28Ah

Model: MINI-DO3606-6
Nominal Voltage: 36V
Nominal Capacity: 6.6Ah
Energy: 237.6Wh
Configuration: 10S3P
Charge Voltage: 42V
Charge Current: 2-3A
Charge Time: 2-4Hrs
Charge Port: DC
Max. Continuous Discharge Current: 20A
Discharge Cut-off Voltage: 28V
Fit Motor: ≤360W
Cycle Life: 800Cycles
Dimensions: 460*70*83mm
Approx. Weight: 2.9kgs

EMAIL

HiPOWER Dorado Hidden Down Tube Type Lithium E-bike Battery Li-ion 36V 48V with Customized Capacity of

6.6Ah 8.8Ah 10Ah 11Ah 12Ah 13Ah 14Ah 15Ah 16Ah 17Ah 18Ah 20Ah 21Ah 23Ah 25Ah 26Ah 27Ah 28Ah


Specification

HiPOWER Dorado Hidden Down Tube Type Lithium E-Bike Battery 36V 6.6Ah

Model: MINI-DO3606-6

Nominal Voltage: 36V

Nominal Capacity: 6.6Ah

Energy: 237.6Wh

Configuration: 10S3P

Charge Voltage: 42V

Charge Current: 2-3A

Charge Time: 2-4Hrs

Charge Method: CC/CV

Charge Port: DC

Max. Continuous Discharge Current: 20A

Discharge Cut-off Voltage: 28V

Fit Motor: 360W

BMS Functions: over-charge, over-discharge, over-current, short circuit, and temperature protection.

Cycle Life: 800Cycles

Dimensions: 460*70*83mm

Approx. Weight: 2.9kgs

Charge Temperature: -10 to 55 (-14F to 131F) @60±25% Relative Humidity

Discharge Temperature: -30 to 60 (-22F to 140F) @60±25% Relative Humidity

Storage Temperature: -10 to 45 (-14F to 113F) @60±25% Relative Humidity



Support OEM/ ODM Service:

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

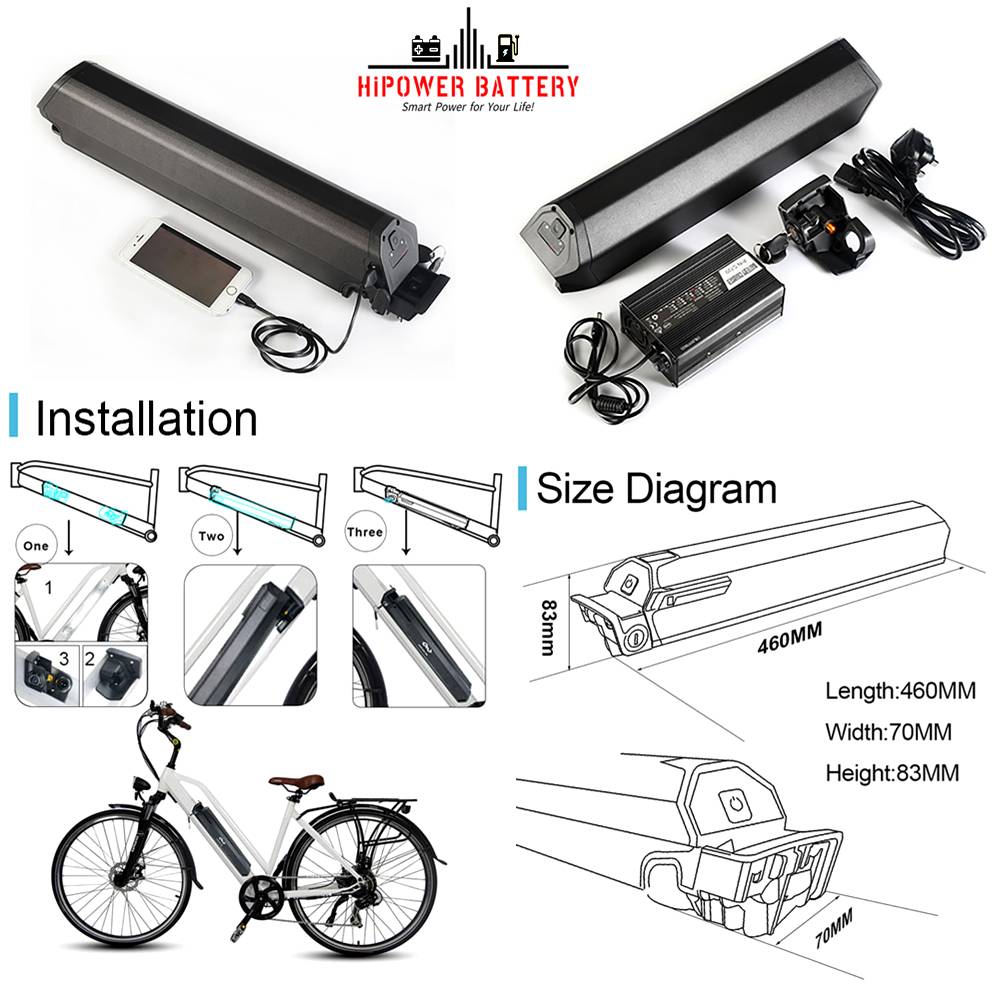

Dorado E-bike Battery-1.jpg

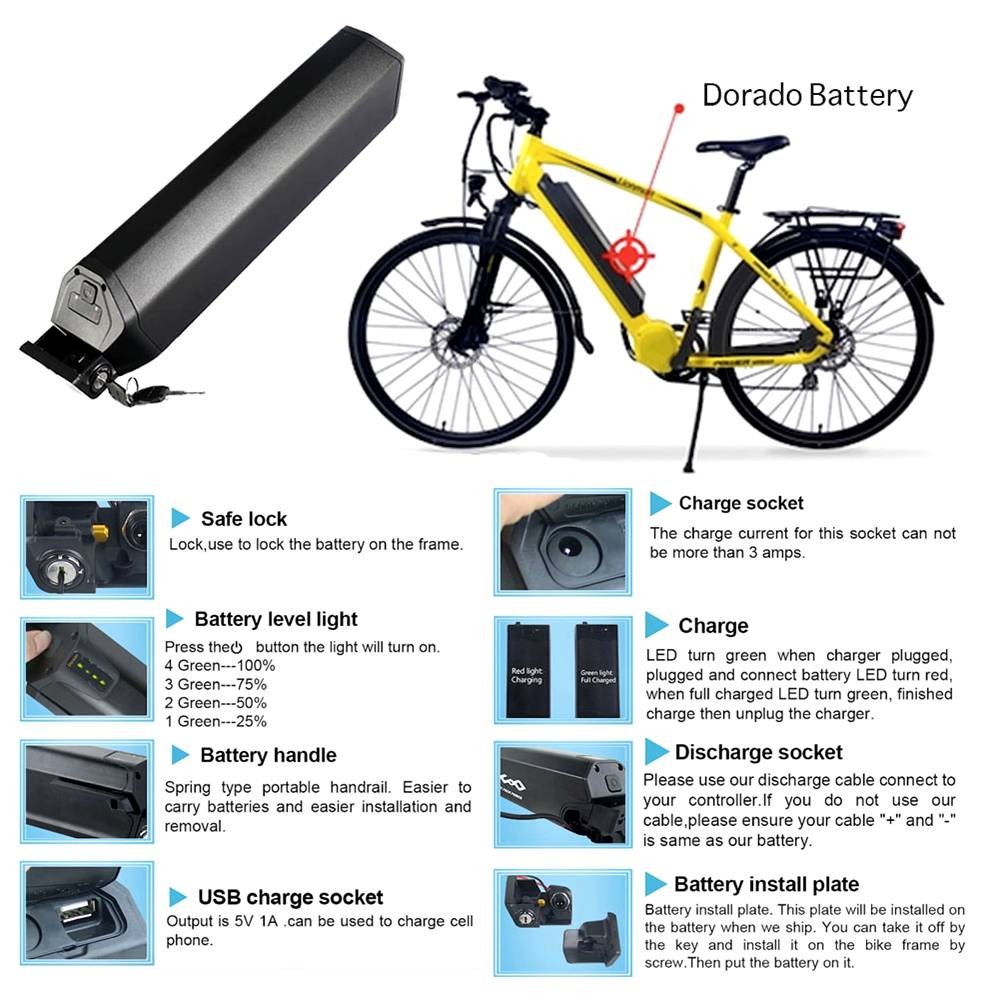

Dorado E-bike Battery-2.jpg



More Standard Type E-Bike Battery Models:


Application Scenarios:

HiPOWER Battery Applications.JPG

Certifications:

HiPOWER Certification.JPG
