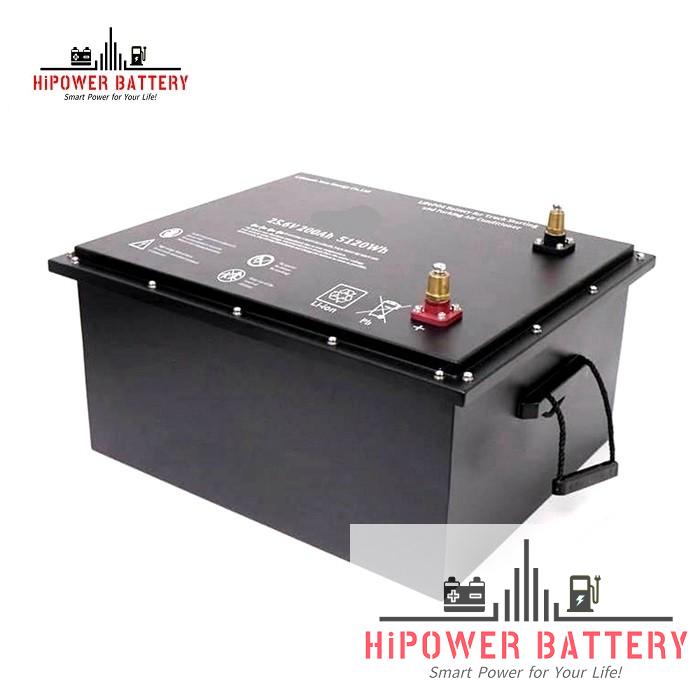

HiPOWER 24V 100Ah LiFePO4 Lithium Battery for Truck Starting and Parking Air Conditioner

Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Energy: 2560Wh
Continuous Working Current: 100 A
Peak Working Current: 280 A (3S)
CCA: 1000A (1S)
Cycle Life: 5000 Cycles
Housing: Metal Case
Dimensions: 350*340*238mm
Weight: 30kgs
IP Class: IP54
Bluetooth: Yes
Warranty: 5 Years

EMAIL

Specification

Model

LiFePO4 Battery 24V 100AH for truck cranking and parking air conditioner

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Energy

2560Wh

Cycle Life

>5000 cycles

Months Self   Discharge

<3%

Efficiency of   Charge

100% @0.5C

Efficiency of   Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Charge Voltage

28.4-29.2V

Charge Mode

0.2C to 29.2V, then 29.2V,charge current to 0.02C (CC/CV)

Max. Charge Current

100A

Max Continuous Discharge Current

100A

Peak Discharge Current

280A  (3S)

CCA

1000A  1S

Discharge Cut-off Voltage

20V±0.5V

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP54

Housing

Metal Case

Approx. Dimensions

350*340*238mm

Approx. Weight

30kgs


Support OEM/ ODM Service:

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

* Customize Bluetooth APP


24V 100Ah 200Ah Truck Starter Battery.jpg

BMS Functions:

HiPOWER BMS.JPG

Battery Structure and Assembly Process:

Battery Structure. Process.JPG

Application Scenarios:

HiPOWER Battery Applications.JPG

Certifications:

HiPOWER Certification.JPG



Shenzhen High Power Battery Technology Company is dedicated to the R&D, manufacturing and sales of motive power systems and energy storage systems as one-stop solutions. With more than 10 years of combined experience in manufacturing renewable energy and battery systems, HiPOWER provides Lithium Batteries covering most daily living and working fields. Our products include two main series, which are

1.   Energy Storage Batteries & Systems

LiFePO4 Battery for Lead Acid Replacement

RV/Caravan/Camper/Marine/Solar Battery

Rack-mounted Lifepo4 Battery

Wall-mounted Lifepo4 Battery

All-In-One Energy Storage System

Portable Power Station

Low Voltage Energy Storage System

High Voltage Energy Storage System

Commercial & Industrial ESS

2.   Motive Power Batteries

Golf Cart Battery

Floor Cleaner/Scrubber Battery

Forklift Battery

Aerial Work Platform Battery

E-bike Battery

E-scooter/motorcycle/tricycle Battery

Starter Battery

Shenzhen High Power Battery Technology Co., Ltd, is a professional and reliable Hi-tech manufacturer of lithium battery and energy storage products. HiPOWER headquarter located in Shenzhen, owns two factories, one in Shenzhen with area over 7000 m² and more than 200 employees, another one in Huizhou City with area more than 10000 m² and more than 250 employees. HiPOWER owns and operates automatic production lines, a full range of test equipment and an advanced MES that collectively address all aspects of its manufacturing process, from electronics, software design to module assembly, battery assembly as well as initial and final testing.

As a renewable energy innovator, HiPOWER is committed to the mission of achieving energy sustainability while creating a better life for human beings. We have always adhered to the concept of innovation and customer-oriented development, environmental protection and green development. We will continuously enhance our innovation ability, outstanding production capacity and increasingly perfect delivery ability to deepen the cooperation with customers all over the world.



HiPOWER Factory Assembly Lines.JPG12.jpg

Packing Shipping Payment.JPG
