Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy: 1280Wh
Continuous Working Current: 100 A
Peak Working Current: 280 A (5S)
CCA: 1200A
Cycle Life: 5000 Cycles
Dimensions: L318xW175xH190mm
Weight: 10 kgs
IP Class: IP65
Connection in Serials: Max. 4pcs
Connection in Paralels: Max. 4pcs
Bluetooth: Yes
Warranty: 5 Years
Application: Car Start-Stop, Boat Start, Power Backup, and so on
Specification:

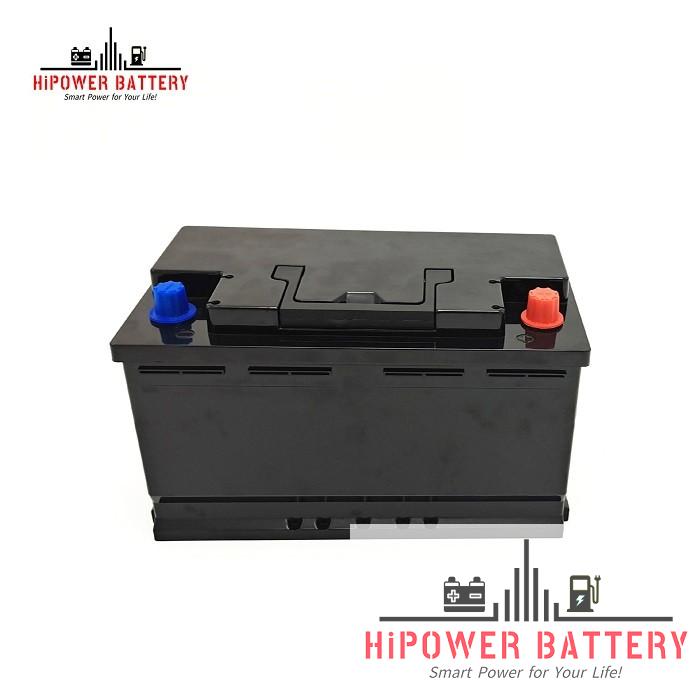

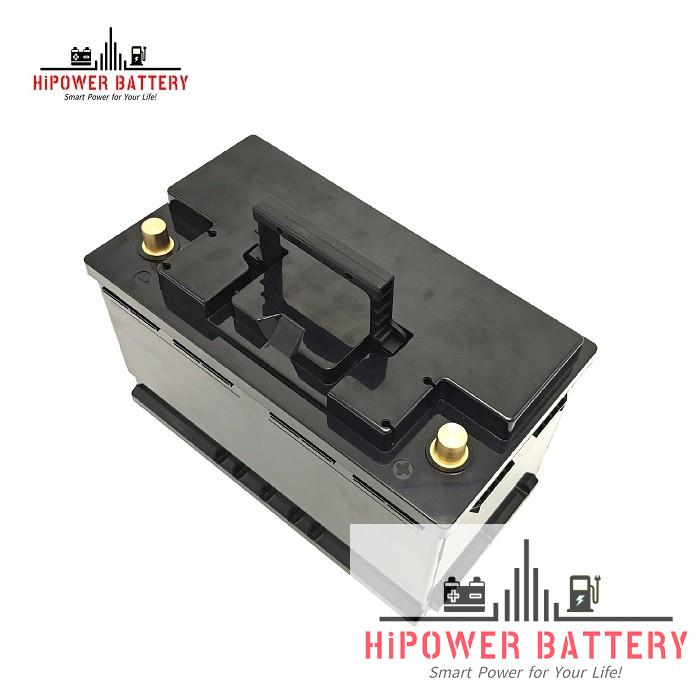

HiPOWER LiFePO4 Lithium Starter Battery 12V 100Ah | |
Model | HP12100ST |
Nominal Voltage | 12.8V |
Nominal Capacity | 100Ah |
Energy | 1280Wh |
Cycle Life | >5000 cycles |
Months Self Discharge | <3% |
Efficiency of Charge | 100% @0.5C |
Efficiency of Discharge | 96~99% @0.5C |
BMS Functions | Over charge, over discharge, over current, short circuit and temperature protection |
Charge Voltage | 14.2-14.6V |
Charge Mode | 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
Charge Current | 15A |
Max. Charge Current | 100A |
Max Continuous Discharge Current | 100A |
Peak Discharge Current | 280A 5S |
CCA | 1200A |
Discharge Cut-off Voltage | 10V±0.5V |
Charge Temperature | 0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
Storage Temperature | -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
IP Class | IP65 |
Plastic Case | ABS |
Approx. Dimensions | L318xW175xH190mm (12.52''x6.89''x7.48'') |
Approx. Weight | 10kgs (22.05lbs) |
Support OEM/ ODM Service:
* Customize Battery Size/ Color/ Logo, etc.
* Customize Battery Capacity, Working Current;
* Customize Battery Connector/ Charger
* Customize Bluetooth APP
BMS Functions:
Battery Structure and Assembly Process:
Application Scenarios:
Certifications:
