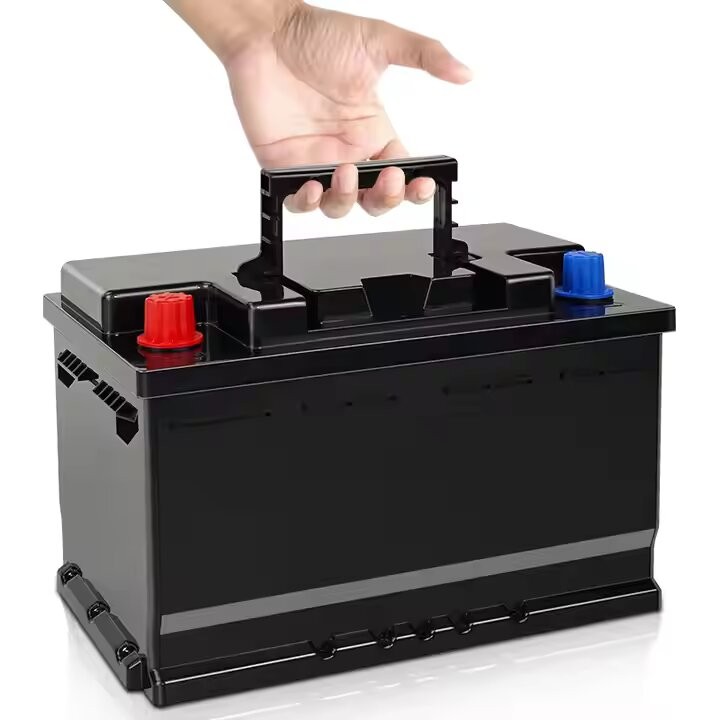

Lifepo4 12v 105ah low temperature lithium iron battery with smart bms and bluetooth used in extreme cold weather condition

Nominal Voltage: 12.8V
Nominal Capacity: 105Ah
Energy: 1344Wh
Charge Current: 100A max.
Discharge Current: 100A/200A
Peak Discharge Current: 300A/600A
Serial Connection: 4PCS Max to 48V
Parallel Connection: 4PCS Max to 400Ah
Charge Temperature (with Heating): -20℃ to 50℃ (-4F to 131F)
Discharge Temperature: -20℃ to 60℃ (-4F to 140F)
Dimensions (Approx.): 280x177x188mm
Weight (Approx.): 11.5KGS

EMAIL

Specification:

Model: LiFePO4 Battery 12V 105Ah
Nominal Voltage: 12.8V
Nominal Capacity: 105Ah
Energy: 1344Wh
Cycle Life: >5000 cycles
Months Self Discharge: <3%
Efficiency of Charge: 100% @0.5C
Efficiency of Discharge: 96~99% @0.5C
BMS Functions: Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage: 14.2V
Charge Cut-off Voltage: 14.6V
Charge Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
Suggest Charge Current: 15A
Max. Charge Current: 100A
Max Continuous Discharge Current: 100A or 200A
Peak Discharge Current: 300A or 600A (<3S)
Discharge Cut-off Voltage: 10V±0.5V

Serial Connection: 4pcs max to 48V

Parallel Connection: 4pcs max to 400Ah
Charge Temperature (with Heating): -20℃ to 50℃ (-4F to 131F) @60±25% Relative Humidity
Discharge Temperature: -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature: -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity
IP Class: IP65
Housing: ABS Plastic Case
Dimensions (Approx.): 280x177x188mm

Weight (Approx.): 11.5KGS


Applications:

* Solar/Wind Energy Storage Applications

* Back-up Power for UPS/ EPS

* RV, Caravan, Motor home

* Marine/ Yacht/ Fishing Boats

* Telecommunication/ Data Center Base

* DC Power Supply

* Auto Control System

* Power Tools

* Electric Toys
