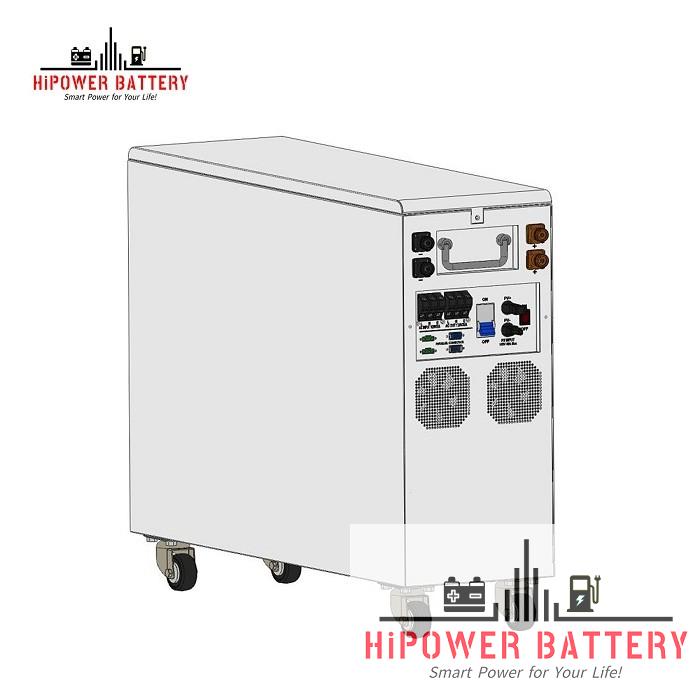

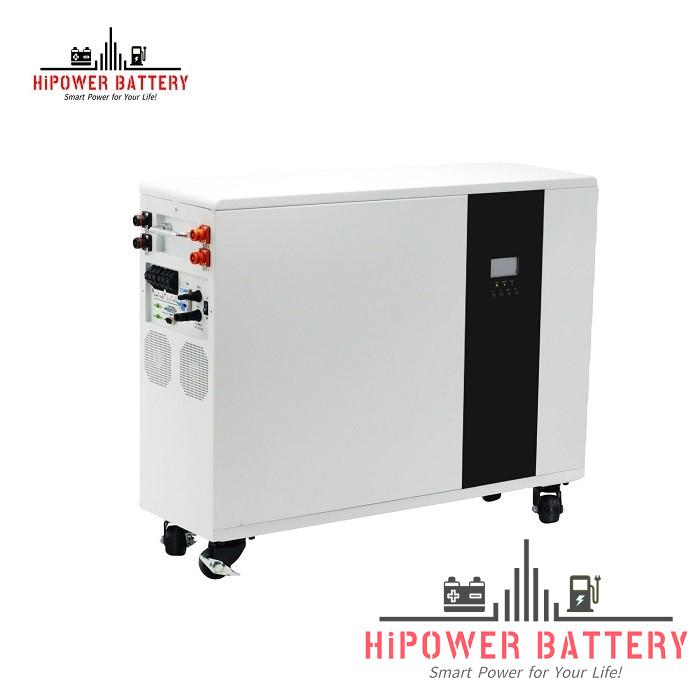

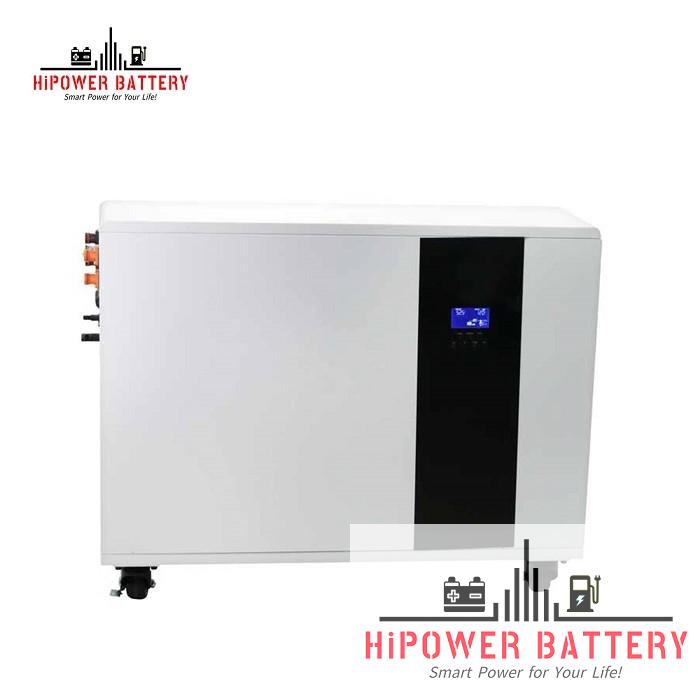

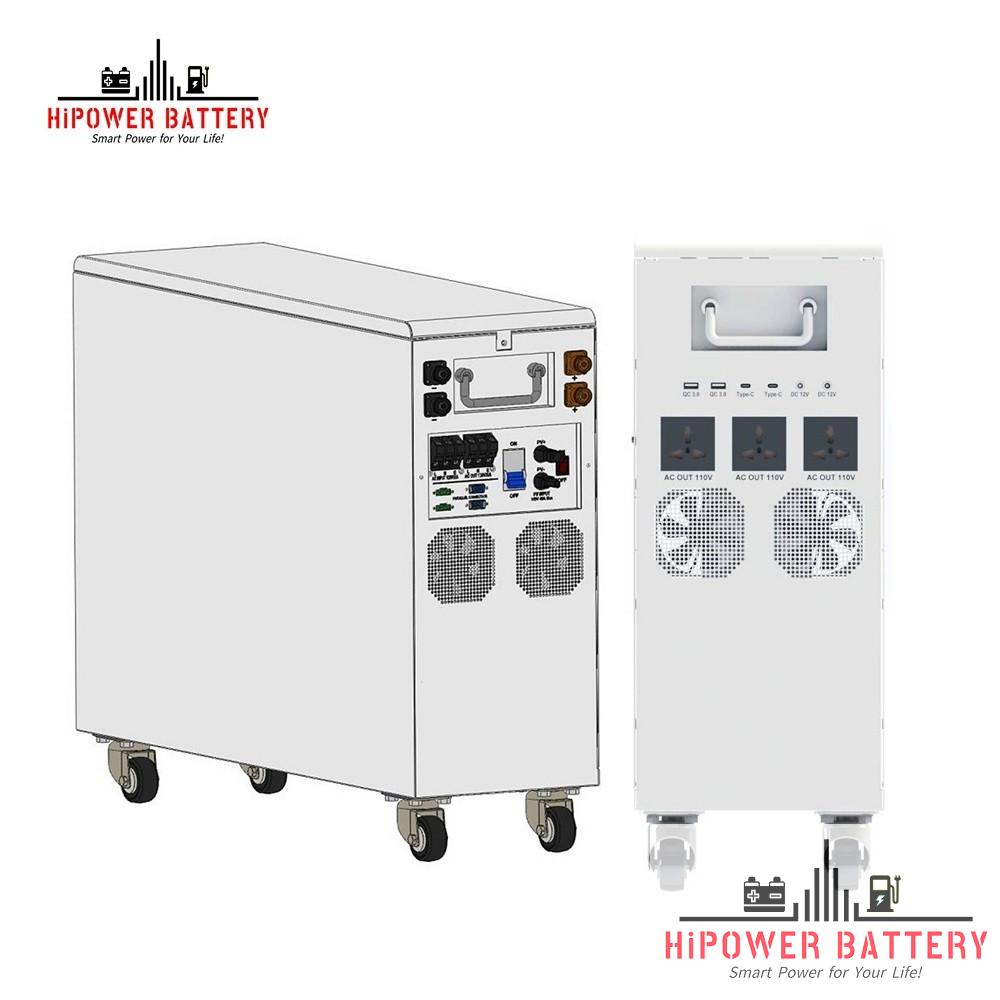

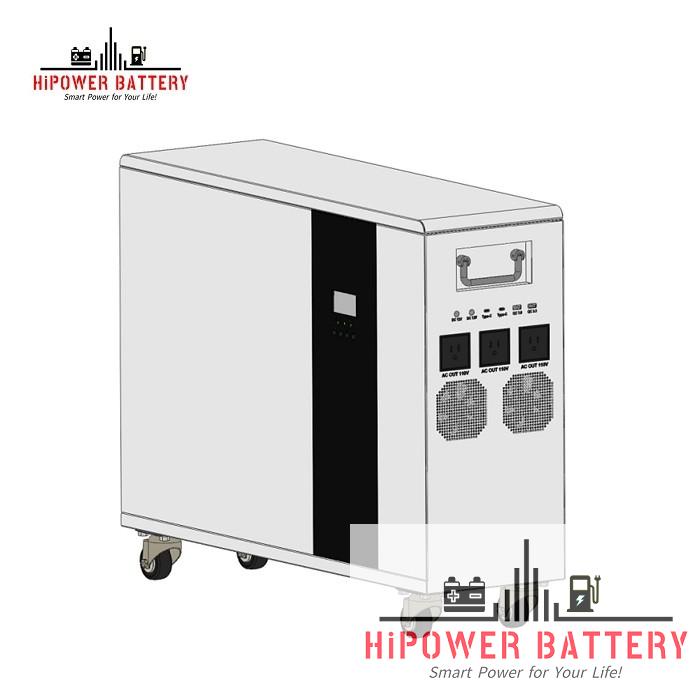

HiPOWER 5kWh All-In-One Energy Storage System with Built-in Inverter 5000W and MPPT Controller LiFePO4 Lithium Battery Pack 48V100Ah

Model: HP48100AE
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy: 5120Wh
Charging Current: 10 A
Continuous Working Current: 100 A
Cycle Life: 5000+ Cycles
Dimensions: 750X230x525mm
Weight: 73kgs
IP Class: IP30
Communication: Bluetooth
Inverter: 5000W
Solar Charge Current: 80A Max.
Warranty: 5 to 10 Years

EMAIL

Specification

HiPOWER All-In-One Energy Storage Systems

Model:

HP24200AE

HP48100AE

HP48200AE

Electrical Characteristics




Battery Type

Lithium Iron Phosphate (LiFePO4) Battery

Nominal Voltage

25.6V

51.2V

51.2V

Nominal Capacity

200Ah

100Ah

200Ah

Energy

5120Wh

5120Wh

10240Wh

Cycle Life

> 5000 cycles

Months Self Discharge

< 3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Bluetooth

Bluetooth APP

Max. Modules in parallel

3pcs (Inverter   AC in parallel)

Charge   Parameters



Charge Voltage

28.8V-29.2V

56.8V-58.4V

56.8V-58.4V

Charge Mode

CC/CV

Recommend Charge Current

40A

20A

20A

Max. Charge Current

60A

40A

60A

BMS Charge Voltage Cut-Off

30 V  (2 s)

60 V  (2 s)

60 V  (2 s)

Reconnect Voltage

28.4 V

56.8 V

56.8 V

Balancing Voltage

27.2V

54.4V

54.4V

 Discharge Parameters



Max Continuous Discharge Current

150A

100A

150A

Peak Discharge Current

180A  (10S)

120A  (10S)

180A  (10S)

BMS Discharge Cut-off Voltage

20V (2S)

40V (2S)

40V (2S)

Reconnect Voltage

21.6V

43.2V

43.2V

Environmental



Charge Temperature

 0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

 -20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

 -10 to 35 (14F to 95F) @60±25% Relative Humidity

BMS High Temperature Cut-Off

75   (167 °F)

Reconnect Temperature

65   (149 °F)

Enclosure Protection (IP Class)

IP30

Mechanical



Shell Material

SPCC

SPCC

SPCC

Approx. Dimensions

750X230x525mm
   (29.53 x 9.05 x 20.66 inch)

750X230x525mm
   (29.53 x 9.05 x 20.66 inch)

750 x255 x 635 mm
  (29.52 x 10.03 x 25.00 inch)

Approx. Weight

73kgs (160.9 lbs   )

73kgs (160.9 lbs   )

105kgs (231.4   lbs )

Input & Output



AC Input Voltage

AC 220V 50HZ /
  AC110V 60HZ

AC 220V 50HZ /
  AC110V 60HZ

AC 220V 50HZ /
  AC110V 60HZ

AC Output Voltage

AC 220V 50HZ /
   110V 60HZ / 15A Max

AC 220V 50HZ /
  110V 60HZ / 15A Max

AC 220V 50HZ /
  110V 60HZ / 15A Max

AC Charge Current

40A Max

60A Max

60A Max

AC Power

3000W(220V) / 3000W(110V)

5000W(220V) / 3500W(110V)

5000W(220V) / 3500W(110V)

AC Peak Power

6000W(220V) / 6000W(110V)

8000W(220V) / 4000W(110V)

8000W(220V) /  4000W(110V)

Highest  conversion rate

88-92%

88-93%

88-91%

Solar panel power

30-100V 1400W Max

60-145V 4200W Max

60-145V 4200W Max

Solar charging current

60A Max

80A Max

80A Max

Solar Charge

Built-in MPPT

Waveform

Pure sine wave

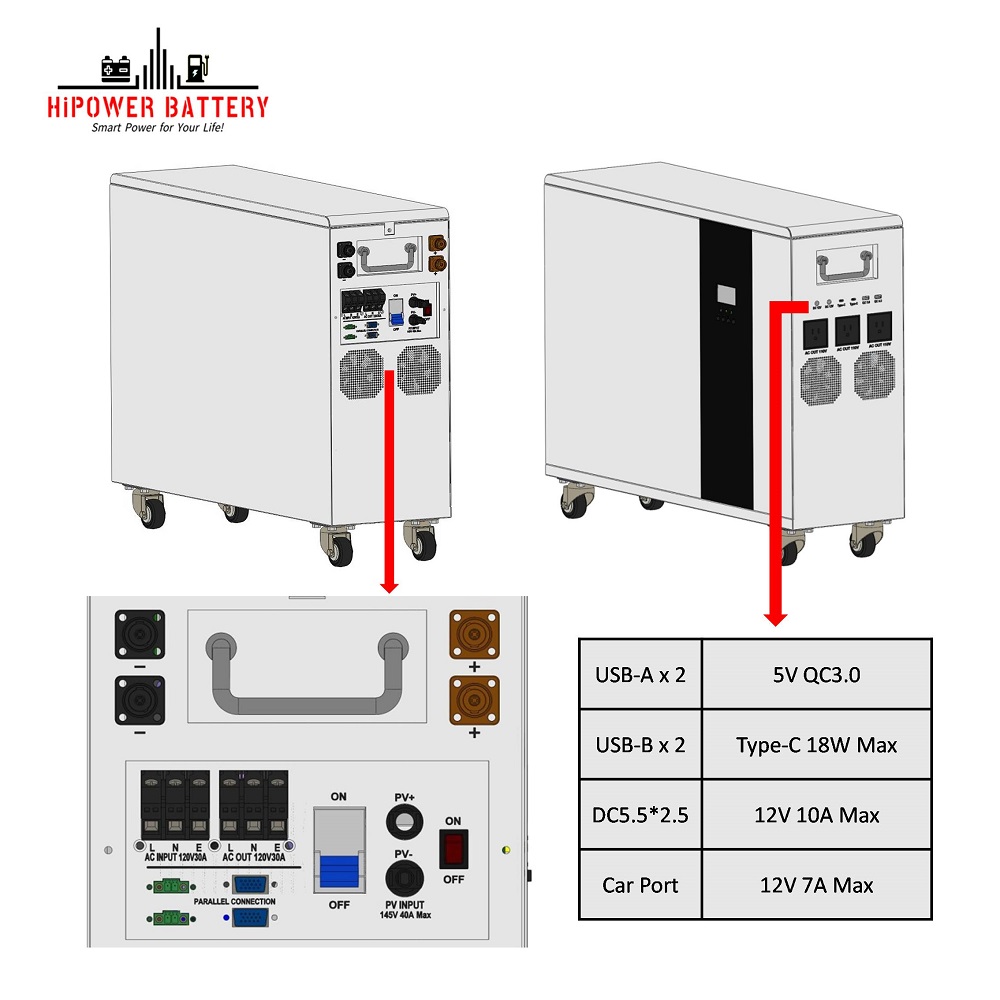

USB-A x 2

QC3.0

USB-B x 2

Type-C 18W Max

DC5.5*2.5

12V 10A Max

Car Port

12V 7A Max


Support OEM/ODM Service

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

* Customize Bluetooth APP
