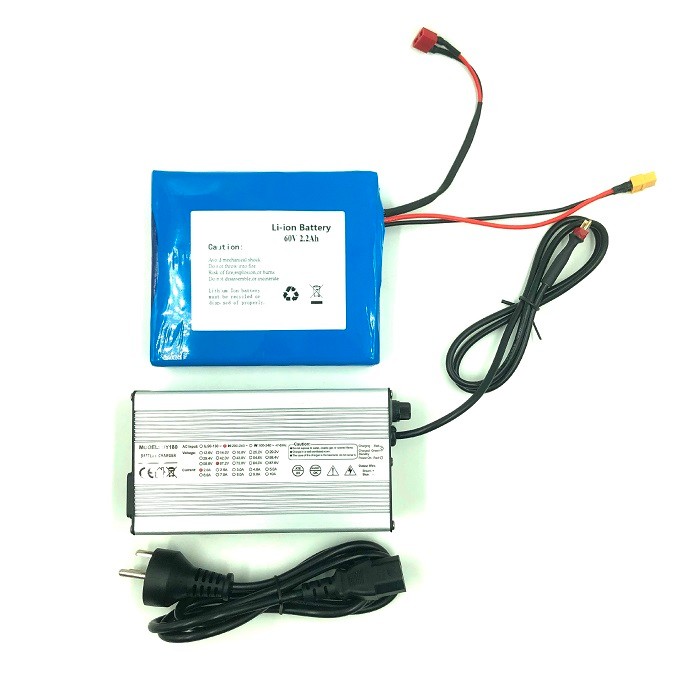

Lithium Battery Pack 60V 2.2Ah 59.2V 16S1P for Electric Skateboard Hoverboard

Lithium Battery Pack 60V 2.2Ah 59.2V 16S1P for Electric Skateboard Hoverboard

Model: Li-Ion Battery 60V 2.2Ah
Configuration: 16S1P
Nominal Voltage: 59.2V
Nominal Capacity: 2.2Ah
Energy: 130.24Wh
Charge Voltage: 67.2V
Charge Current: 2A max.
Max. Continuous Working Current: 6A or customized
Peak Discharge Current: 10A
Fit Motor Power: 150W max.
Dimensions: 155*135*28mm or Customized
Weight: 1.1kgs
Cycle Life: 800 Cycles

Customized Lithium Ion Battery Pack 60V 2.2Ah 59.2V 16S2P SAMSUNG 22P 18650-2200mAh with Charger for Electric Skateboard Hoverboard

Specification:

Model	Li-Ion Battery 60V 2.2Ah
Product Parameters
Battery Cell	Grade A 18650 power cells, Chinese big brands or Samsung, LG
Nominal Voltage	59.2V
Nominal Capacity	2.2Ah
Energy	130.24Wh
Charge Voltage	67.2V
Charge Current	2A (Max.)
Charge Method	CC/CV
Working Voltage Range	48V - 67.2V
Max. Continuous Discharge Current	6A or Customized
Peak Discharge Current	10A
BMS Protections	Over charge, over discharge, over current, short circuit and temperature protection
Housing	PVC Wrapped
Connector & Cables	Customized
Dimension	15513028mm or Customized
Weight (Approx.)	1.0KGS
Charge Temperature	0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
Cycle Life	800+ Cycles
Motor Power	150W Max.
Applications	Electric Skateboard, Hoverboard, Electric Toys, etc.

Features of HiPOWER Lithium EV Batteries:
1. Lighter weight, smaller size.
2. Can be customized, install easily.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Large capability and long life for all high power output applications.
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.

9. Low self-discharge and good discharge performance at low temperature.

Factory Lithium Battery Test:

HiPOWER' Battery Packs and Battery Cells are tested before delivery to ensure excellent quality and safety.

Test Item	Test Findings
Over Charge Test	NO FIRE,NO EXPLOSION
Over Discharge Test	NO FIRE,NO EXPLOSION
Drop Impact Test	NO FIRE,NO EXPLOSION,NO LEAKAGE
Short Circuit Test	NO FIRE,NO EXPLOSION
Crush Test	NO FIRE,NO EXPLOSION
High Temperature Test	NO DEFORMATION,NO LEAKAGE
Needle Puncture Test	NO FIRE,NO EXPLOSION
