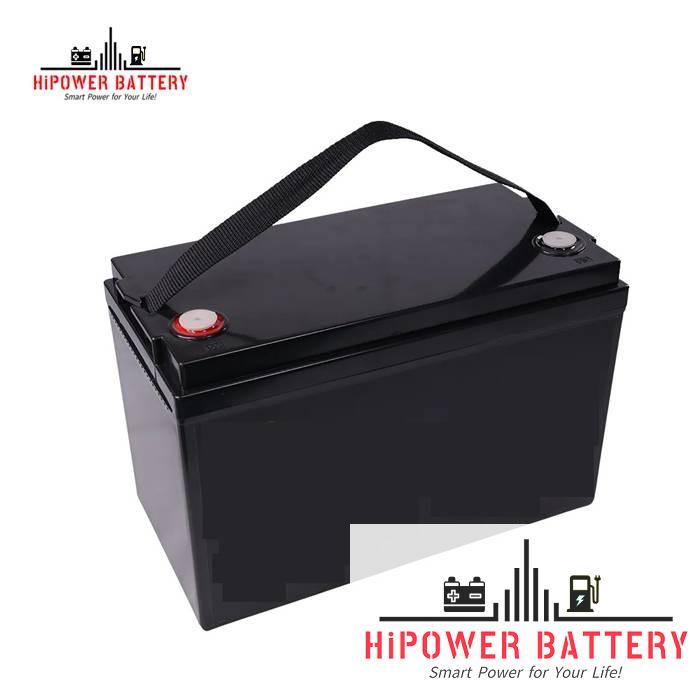

LiFePO4 48V 30Ah Lithium Iron Battery Pack

Nominal Voltage: 51.2V
Nominal Capacity: 30Ah
Energy: 1536Wh
Continuous Working Current: 30 A
Peak Working Current: 90 A
Cycle Life: 5000 Cycles
Dimensions: 329x172x214mm
Weight: 12.5kgs
IP Class: IP65
Connection in Paralels: Max. 4pcs
Bluetooth: Yes
Warranty: 5 Years
Used to replace lead-acid batteries

EMAIL

Specification

Battery Model: LiFePO4 Battery 48V 30Ah

Nominal Voltage: 51.2V

Nominal Capacity: 30Ah

Stored Energy: 1536Wh

Self-discharge Rate: < 3% /months

Efficiency of Charge: 100% @0.5C

Efficiency of Discharge: 96~99% @0.5C

Cycle Life: >5000 cycles

Charging Voltage: 56.8V - 58.4V

Charging Mode: 0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)

Standard Charging Current: 5A

Max Charging Current: 30A

Discharging Voltage: 40V-58.4V

Max. Continuous Discharging Current: 30A or Customized

Peak Discharging Current: 90A (<5s)

Discharge Cut-off Voltage: 40V±0.5V

Housing: ABS Plastic Case

Color: Black, or Customized

Dimension: 329x172x214mm (12.95''x6.77''x8.43'')

Weight: About 12.5kgs (27.56lbs)

IP Class: IP65

Charge Temperature: 32℉ to 131℉(0℃ to 55℃)

Discharge Temperature: -4℉to 140℉(-20℃ to 60℃)

Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

Charge Temperature with Heating Function: -4℉to 131℉(-20℃ to 55℃) (Optional)

BMS High Temperature Cut-Off: 167℉ (75℃)

Reconnect Temperature: 122℉ (50℃)



Typical Application:

1. Lead Acid Battery Replacement

2. Solar or Wind Energy

3. RV, Caravan, Camper, Motorhome

4. Marine, Boat, Yacht

5. UPS/ EPS

6. Electronic Devices



Features of HiPOWER LiFePO4 Lithium Batteries:

1. Longer cycle life, 5 times lifetime than lead acid battery.

2. Higher safety, reliability and energy density.

3. Smaller size and lighter weight.

4. Better performance at high and low temperature.

5. Intelligent battery management system (BMS) built-in.

6. Completely Sealed and Maintenance free.

7. 100% precise quality testing, stable quality and high reliable performance.

8. Environmentally friendly, non-toxic, non-contaminating, no rare metal.

9. Low self-discharge and good discharge performance at low temperature.

10. Easy installation and Operation.
