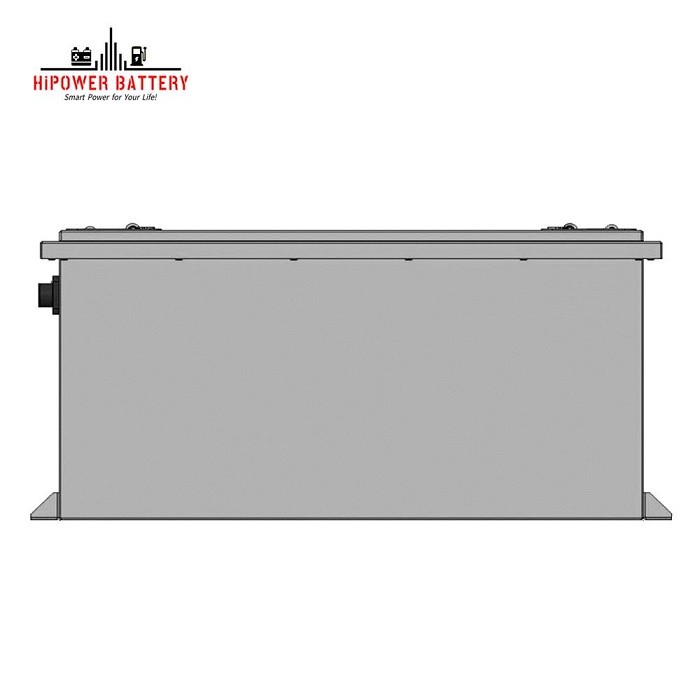

Model: HPEV48160
Battery Type: LiFePO4
Nominal Voltage: 51.2V
Nominal Capacity: 160Ah
Energy: 8.192kWh
Charge Current: 20A (Recomend)- 100A (Max)
Max. Discharge Current: 200A
Peak Discharge Current: 600A (<10S)
Communication: RS485 or CAN (Optional)
Battery Indicator: Optional
Bluetooth APP: Yes
Cycle Life: 5000+ Cycles
Warranty: 5 to10 Years
Housing: Metal Case
Dimensions:609x308x271mm or Customized
Weight: Approx. 73KGS
IP Rating: IP54
HiPOWER Battery Factory Supplies High Quality Big Power LiFePO4 Lithium Iron Battery 48V 160Ah with Smart BMS built-in, Blooth App for Monitoring the Real Time Status, More Than 5000 Cycle Life, High Discharge Current, Ultra Safe, Best Option for Your Golf Carts and Low Speed Vehicles. We Support OEM/ ODM Service and Offer 5 to 10 Years Warranty!!!
Specification
HiPOWER Golf Cart Battery 48V 160Ah | |
Model | HPEV48160 |
Product Parameters | |
Battery Cell Type | LiFePO4 |
Nominal Voltage | 51.2V |
Nominal Capacity | 160Ah |
Energy | 8.192kWh |
Charge Voltage | 54.4V - 58.4V |
Suggest Charge Current | 20A |
Max. Charge Current | 100A |
Working Voltage Range | 40V - 58.4V |
Max. Continuous Discharge Current | 200A |
Peak Discharge Current | 600A (<5S) |
Housing | Metal Case |
Dimension (L*W*T) | 609x308x271mm or Customized |
Weight (Approx.) | 73KGS |
Battery Charger (Optional) | Recommend LiFePO4 Battery Charger 16S 58.4V 10A - 100A |
IP Rating | IP54 |
Charge Temperature | 0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
Storage Temperature | -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
Cycle Life | 5000+ Cycles |
BMS Protections | Over charge, over discharge, over current, short circuit and temperature protection |
Communication | Bluetooth/ CAN/ RS485 (Optional) |
Hot Sale Golf Battery Models:
Features:
- 5-10 Years Manufacturer Warranty and Life Long Technical Support
- 5000+ Cycle Life & Maintenance-free
- Powerful Working Current to Choose: 150A, 200A, 250A Continuous-600A Peak
- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery
- Grade A LiFePO4 EV Cell
- Built-in Smart Battery Management System (BMS)
- With Bluetooth APP for Real Time Data Monitoring
- Over Charge and Over Discharge Protection
- Over Current and Short Circuit Protection
- High & Low Temperature Protection
- IP65 Rated, Dust and Waterproof
- Internal Heating Allows for Charging in Below Freezing Conditions(Optional)
- Wide Temperature for Charge: 0 ℃ to 55 ℃ (32F to 131F), or
- With Heating: -20 ℃ to 55℃ (-4F to 131F) (Optional)
- Wide Temperature for Discharge: -20 ℃ to 60 ℃ (-4F to 140F)
Support OEM/ODM Service
Some Common Golf Cart DC Connectors:
Suitable Golf Cart Brands:
HiPOWER golf cart lithium batteries are compatible with these golf cart brands:
Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman,
EZGO TXT, EZGO RXV, Elite, Evolution, EPIC, GEM Cars, ICON, Kandi, Madjax X-series,
Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha.
HiPower Battery is compatible with many other carts and electric EV vehicles.
Please contact us for more information.
Email: sales@hipowerbattery.com
Certifications:
Shenzhen High Power Battery Technology Company is dedicated to the R&D, manufacturing and sales of motive power systems and energy storage systems as one-stop solutions. With more than 10 years of combined experience in manufacturing renewable energy and battery systems, HiPOWER provides Lithium Batteries covering most daily living and working fields.
