HiPOWER Marine Battery Lifepo4 12V 300Ah 12.8V with Bluetooth 6000 Cycles

Nominal Voltage: 12.8V
Nominal Capacity: 300Ah
Energy: 3840Wh
Continuous Working Current: 200 A
Peak Working Current: 500 A
Cycle Life: 6000 Cycles
Dimensions: 522x269x220mm
Weight: 32 kgs
IP Class: IP65
Connection in Serials: Max. 4pcs
Connection in Paralels: Max. 4pcs
Bluetooth: Yes
Warranty: 5 Years

EMAIL

HiPOWER HiPOWER Marine Battery Lifepo4 12V 300Ah 12.8V with Bluetooth 6000 Cycles for Solar Energy UPS Lead Acid Battery Replacement


Specification:

Model

LiFePO4 Battery 12V 300Ah

Nominal Voltage

12.8V

Nominal Capacity

300Ah

Energy

3840Wh

Cycle Life

>5000 cycles

Months Self Discharge

<3%

Efficiency of Charge

100% @0.5C

Efficiency of Discharge

96~99% @0.5C

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Charge Voltage

14.4 ± 0.2V

Charge Mode

0.2C to 14.6V, then 14.6V, charge current to 0.02C (CC/CV)

Charge Current

30A

Max. Charge Current

200A

2Max Continuous Discharge Current

200A

Peak Discharge Current

500A  1-3S

Discharge Cut-off Voltage

10V±0.5V

Charge Temperature

0 to 55 (32F to 131F) @60±25% Relative Humidity

Discharge Temperature

-20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

-20 to 45 (-4F to 113F) @60±25% Relative Humidity

IP Class

IP65

Housing

ABS Plastic Case

Approx. Dimensions

520x269x220mm (20.47''x10.59''x8.66'')

Approx. Weight

32kgs (70.55lbs)


Suppport OEM/ ODM Service:

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

* Customize Bluetooth APP

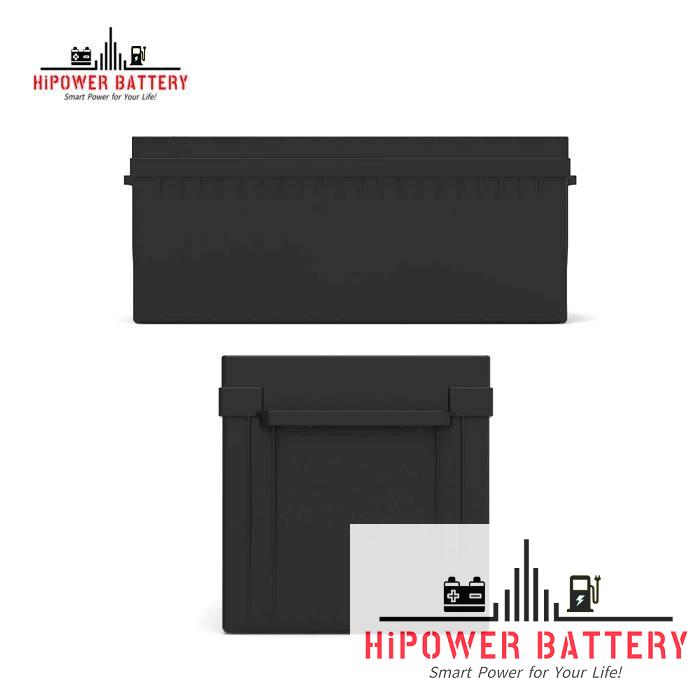

Marine Battery.jpg

BMS Functions:

HiPOWER BMS.JPG

Battery Structures and Assembly Process:

Battery Structure. Process.JPG

Application Scenarios:

HiPOWER Battery Applications.JPG

Certifications:

HiPOWER Certification.JPG



Shenzhen High Power Battery Technology Company is dedicated to the R&D, manufacturing and sales of motive power systems and energy storage systems as one-stop solutions. With more than 10 years of combined experience in manufacturing renewable energy and battery systems, HiPOWER provides Lithium Batteries covering most daily living and working fields. Our products include two main series, which are

1.   Energy Storage Batteries & Systems

LiFePO4 Battery for Lead Acid Replacement

RV/Caravan/Camper/Marine/Solar Battery

Rack-mounted Lifepo4 Battery

Wall-mounted Lifepo4 Battery

All-In-One Energy Storage System

Portable Power Station

Low Voltage Energy Storage System

High Voltage Energy Storage System

Commercial & Industrial ESS

2.   Motive Power Batteries

Golf Cart Battery

Floor Cleaner/Scrubber Battery

Forklift Battery

Aerial Work Platform Battery

E-bike Battery

E-scooter/motorcycle/tricycle Battery

Starter Battery




HiPOWER Factory Assembly Lines.JPG12.jpg
