Nominal Voltage: 12.8V
Nominal Capacity: 300Ah
Energy: 3840Wh
Continuous Working Current: 200 A
Peak Working Current: 500 A
Cycle Life: 5000 Cycles
Dimensions: 242x310x390mm or Customized
Weight: 32 kgs
IP Class: IP54
Connection in Serials: Max. 4pcs
Connection in Paralels: Max. 4pcs
Bluetooth: Yes
Warranty: 5 Years
Specification:

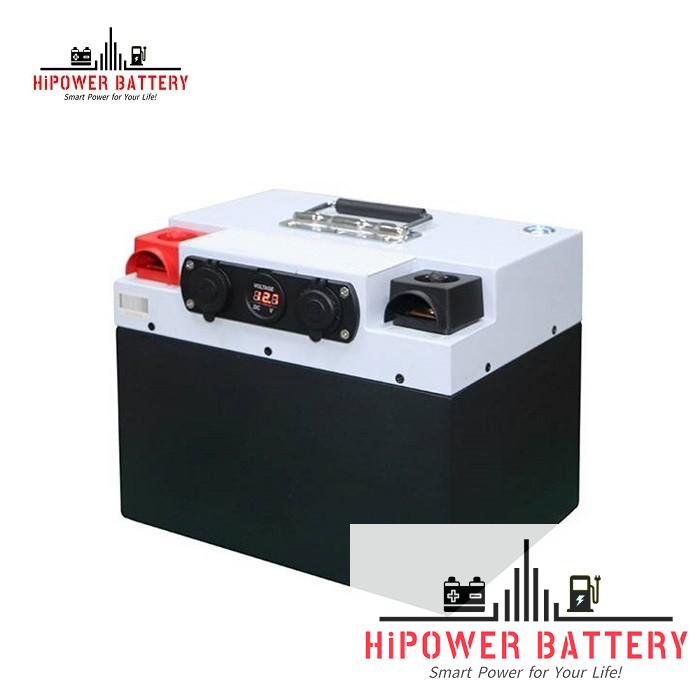

Model: HPES12300 (HiPOWER LiFePO4 Battery 12V 300Ah 3840Wh) | |
ELECTRICAL SPECIFICATIONS | |
Nominal Voltage | 12.8V |
Nominal Capacity | 300 Ah |
Rated Energy | 3840Wh |
Capacity @ 40A | 450min |
Cell Type - Chemistry | Lithium Iron Phosphate (LiFePO4) |
Efficiency | 99% |
Self Discharge | <3% per Month |
Cycle Life | 5000 times |
Modules in Series Connection | 4pcs Max. |
Modules in Parallel Connection | 4pcs Max. |
DISCHARGE SPECIFICATIONS | |
Maximum Continuous Discharge Current | 200 A |
Peak Discharge Current | 600A(<5S) |
Recommended Low Voltage Disconnect | 11.0 V (3.75 V) |
BMS Discharge Voltage Cut-Off | 10.0 V (2.5 ±0.08 V) (2 s) |
Reconnect Voltage | 10.8 V (2.7 ±0.1 V) |
CHARGE SPECIFICATIONS | |
Recommended Charge Current | 20 A |
Maximum Charge Current | 200 A |
Recommended Charge Voltage | 14.2 V – 14.6 V (3.55-3.65 V) |
BMS Charge Voltage Cut-Off | 14.6 V (3.65 ±0.025 V) (2 s) |
Reconnect Voltage | 14 V (3.5 ±0.05 V) |
Balancing Voltage | 13.6 V (3.4 ±0.025 V) |
TEMPERATURE SPECIFICATIONS | |
Discharge Temperature | -22 to 140 °F (-30 to 60 °C) |
Charge Temperature | 32 to 131 °F (0 to 55 °C), or With Heating: -4 to 131 °F (-20 to 55 °C) (Optional) |
Storage Temperature | 14 to 113 °F (-10 to 45°C) |
BMS High Temperature Cut-Off | 167 °F (75 ºC) |
Reconnect Temperature | 122°F (50 ºC) |
MECHANICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 242x310x390 mm or Customized |
Weight | 32.0 kg |
Terminal Type | M8, or M10, or Anderson, or Customized |
Case Material | Metal Case |
Enclosure Protection/ IP Class | IP54 |
BMS SPECIFICATIONS | |
Main Protection Functions | Over Charge, Over Discharge, Over Current, Over Voltage, Short Circuit and Temperature Protections |
Communication | Bluetooth/ CAN/ RS485 (Optional) |
Heating Function | Optional |
COMPLIANCE SPECIFICATIONS | |
Certifications | UN38.3/ MSDS/ IEC/ CE/ UL/ FCC/ RoHS |
Shipping Classification | UN 3480, CLASS 9 |
About this item:
1). HiPOWER 12V LiFePO4 battery adopts Automotive Grade LiFePO4 cells with higher energy density and more stable performance and greater power, maintain the capacity with low self-discharge rate.
2). HiPOWER 12V LiFePO4 battery easy to move and install. Easy to carry and install in any location. It is an ideal choice for outdoor camping power supply and simple indoor installation. It’s very suitable for solar residential, RV, camper, solar and off-grid applications.
3.) HiPOWER 12V LiFePO4 battery is environmentally friendly without acid liquid. Renewable energy, harmless to the environment. Robust ABS casing provides excellent impact resistance and toughness.Lithium-ion batteries are safer than lead-acid batteries, which have no ground-fault protection.
4). HiPOWER 12V LiFePO4 battery has a built-in Battery Management System that can handle battery balance, low and high voltage cut-off and short circuit protection, effectively protecting the lithium-ion cells from being damaged by overcharging or over-discharging, extending battery life.
5). HiPOWER 12V LiFePO4 battery has Bluetooth App which can monitor the real time status of the battery from the Phone at any time.
6). HiPOWER 12V LiFePO4 battery support max. 4pcs connections in serials to 48V system and 16pcs max. in parallels.
7). HiPOWER 12V LiFePO4 battery support self-heating functions for optional, which allow charged under -30℃ (22F)
8). HiPOWER 12V LiFePO4 battery can be safe used in many areas: emergency power supply, home energy storage system, lighting, trolling motor, fish finder, wheelchair scooter, lawn mower, golf cart, boat, solar system, 12V router, UPS backup，portable TV, e-Robot, motorhome/RV camper, Travel/Dump Trailer, electric power wheels car and more.
Support OEM/ ODM Service:
* Customize Battery Size/ Color/ Logo, etc.
* Customize Battery Capacity, Working Current;
* Customize Battery Connector/ Charger
* Customize Bluetooth APP
BMS Functions:
Battery Structure and Assembly Process:
Application Scenarios:
Certifications:
Shenzhen High Power Battery Technology Company is dedicated to the R&D, manufacturing and sales of motive power systems and energy storage systems as one-stop solutions. With more than 10 years of combined experience in manufacturing renewable energy and battery systems, HiPOWER provides Lithium Batteries covering most daily living and working fields. Our products include two main series, which are
1. Energy Storage Batteries & Systems
LiFePO4 Battery for Lead Acid Replacement
RV/Caravan/Camper/Marine/Solar Battery
Rack-mounted Lifepo4 Battery
Wall-mounted Lifepo4 Battery
All-In-One Energy Storage System
Portable Power Station
Low Voltage Energy Storage System
High Voltage Energy Storage System
Commercial & Industrial ESS
2. Motive Power Batteries
Golf Cart Battery
Floor Cleaner/Scrubber Battery
Forklift Battery
Aerial Work Platform Battery
E-bike Battery
E-scooter/motorcycle/tricycle Battery
Starter Battery
Shenzhen High Power Battery Technology Co., Ltd, is a professional and reliable Hi-tech manufacturer of lithium battery and energy storage products. HiPOWER headquarter located in Shenzhen, owns two factories, one in Shenzhen with area over 7000 m² and more than 200 employees, another one in Huizhou City with area more than 10000 m² and more than 250 employees. HiPOWER owns and operates automatic production lines, a full range of test equipment and an advanced MES that collectively address all aspects of its manufacturing process, from electronics, software design to module assembly, battery assembly as well as initial and final testing.
As a renewable energy innovator, HiPOWER is committed to the mission of achieving energy sustainability while creating a better life for human beings. We have always adhered to the concept of innovation and customer-oriented development, environmental protection and green development. We will continuously enhance our innovation ability, outstanding production capacity and increasingly perfect delivery ability to deepen the cooperation with customers all over the world.
