Model: HP-PS1280
Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy: 1280Wh
Charging Current: 20A
Continuous Working Current: 100 A
Cycle Life: 5000+ Cycles
Dimensions: L368xW200xH275mm
Weight: 20 kgs
IP Class: IP30
AC Input Voltage: 110 VAC 60HZ
220 VAC 50HZ
AC Power: 1000W
DC Output: USB/ Type-C/ Car Cigarette Lighter Port
Specification

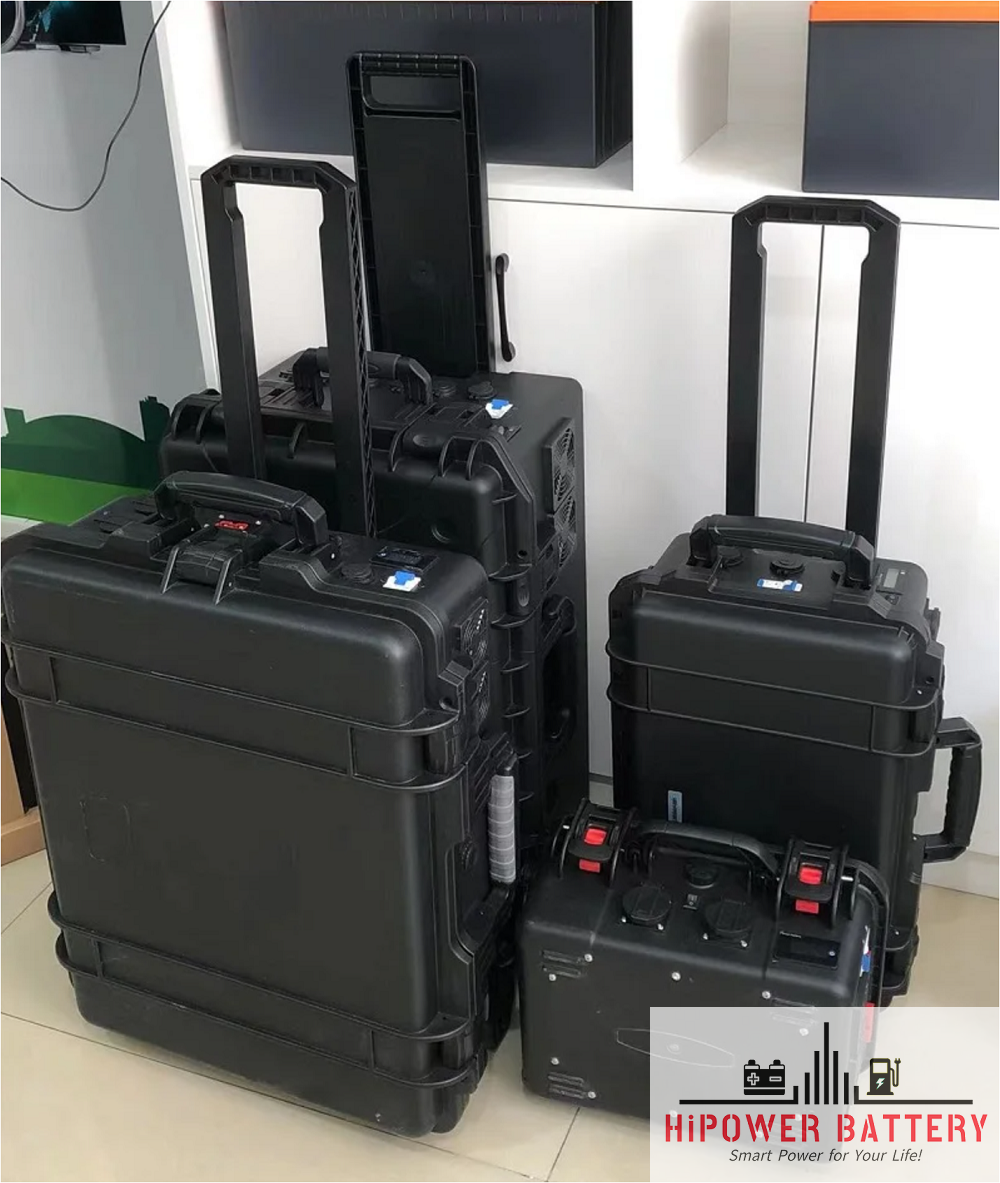

HiPOWER Suitcase Type Power Station LiFePO4 12.8V 100Ah+1000W Inverter | |
Model | HPESS1280 |
Electrical Characteristics | |
Battery Type | Lithium Iron Phosphate (LiFePO4) |
Nominal Voltage | 25.612.8 |
Nominal Capacity | 100Ah |
Energy | 1280Wh |
Cycle Life | >5000 cycles |
Months Self Discharge | <3% |
Efficiency of Charge | 100% @0.5C |
Efficiency of Discharge | 96~99% @0.5C |
BMS Functions | Over charge, over discharge, over current, short circuit, high and low temperature protection |
Standard Charge & Discharge | |
Charge Voltage | 14.2-14.6V |
Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C (CC/CV) |
Charge Current | 20A |
Max. Charge Current | 50A |
Max Continuous Discharge Current | 100A |
Peak Discharge Current | 300A 1-3S |
Discharge Cut-off Voltage | 20V±0.5V |
Environmental | |
Charge Temperature | 0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
Storage Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
IP Class | IP30 |
Input | |
AC Input Voltage | 100V/120V/220V/230VAC 60HZ/50HZ |
AC Charger | DC 14.2-14.6V 50A Max. |
USB-C Input | 5V3A/ 9V2A/ 12V1.5A/ 18W Max. |
Solar Input | DC 30-55V 20A Max. |
Waveform | Pure sine wave |
Output | |
AC Output | 1000W Max. |
AC Output Peak Power | 2000W Max. |
USB-C Input | 5V3A/ 9V2A/ 12V1.5A/ 18W Max. |
Cart Port | 12V 10A Max |
Mechanical | |
Shell material | ABS Plastic |
Approx. Dimensions | L380xW310xT200mm |
Approx. Weight | 20kgs |
Support OEM/ODM Service
* Customize Battery Size/ Color/ Logo, etc.
* Customize Battery Capacity, Working Current;
* Customize Battery Connector/ Charger
* Customize Bluetooth APP
BMS Functions
Matched Inverter Brands:
Application Scenarios:
Certifications:
