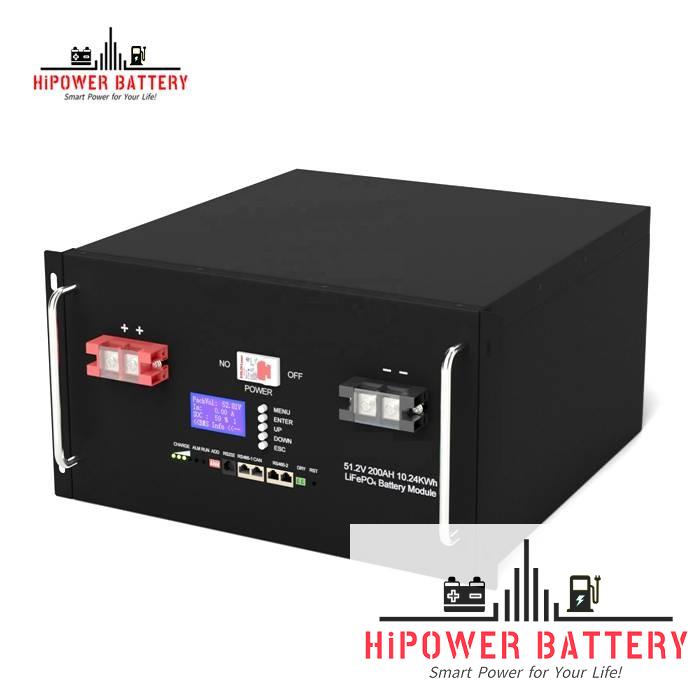

HiPOWER 48V 200Ah Rack Mounted LiFePO4 Lithium Battery for Solar Energy UPS

Nominal Voltage: 48V
Nominal Capacity: 200Ah
Energy: 9600Wh
Continuous Working Current: 200 A
Peak Working Current: 500 A
Cycle Life: 5000 Cycles
Housing: Metal Case
Dimensions: 482X500X280mm or Customized
Weight: 82kgs
IP Class: IP20
Connection in Paralels: Max. 16pcs
Communication: RS485, RS232, CAN
Warranty: 5 to 10 Years

EMAIL


Specification

Model

HPLF48200

Nominal Voltage

48V

Nominal Capacity

200Ah

Energy

9.60kWh

Charge Voltage

53.25-54.75Vdc

Charge Current

20A

Max. Charge Current

200A

Working Voltage

40.5-54.75Vdc

Discharge Cut-off Voltage

37.5V±0.5V

Max Cont. Discharge Current

200A

Max. Power

9600W

Connection in Parallels

16pcs max.

Approx. Dimensions

482X500X280mm

Approx. Weight

82kgs

BMS Functions

Over charge, over discharge, over current, short circuit and temperature protection

Communication

RS485, RS232, CAN

IP Class

IP20

Months Self Discharge

< 3%

Efficiency of Discharge

> 96%

Designed Service Life

> 10 Years

Cycle Life

> 5000 Cycles

Warranty

5-10 Years

Charge Temperature

0 to 55 (32F to 131F) @60±25%   Relative Humidity

Discharge Temperature

 -20 to 60 (-4F to 140F) @60±25% Relative Humidity

Storage Temperature

 -20 to 45 (-4F to 113F) @60±25% Relative Humidity

Storage Time

5 Months @25 ,  3 Months @35 ,  1 Months @45

Lithium Battery Standard

UL1642, IEC, UN38.3, MSDS, CE, FCC, RoHS, ect.


HiPOWER Racked-Mounted LiFePO4 Battery Models

Model

Nominal Voltage

Nominal Capacity

Energy

Dimension

Weight

HPLF24100

25.6V

100Ah

2.56kWh

482x420x133mm

25kgs

HPLF24200

25.6V

200Ah

5.12kWh

482x420x177mm

43kgs

HPLF4850

48V

50Ah

2.40kWh

482x420x133mm

24kgs

HPLF48100

48V

100Ah

4.80kWh

482x420x177mm

42kgs

HPLF48150

48V

150Ah

7.20kWh

482X450X222mm

63kgs

HPLF48200

48V

200Ah

9.60kWh

482X500X280mm

82kgs

HPLF48250

48V

250Ah

12.00kWh

482X500X280mm

96kgs

HPLF5150

51.2V

50Ah

2.56kWh

482x420x133mm

25kgs

HPLF51100

51.2V

100Ah

5.12kWh

482x420x177mm

43kgs

HPLF51150

51.2V

150Ah

7.68kWh

482X450X222mm

65kgs

HPLF51200

51.2V

200Ah

10.24kWh

482X500X280mm

85kgs

HPLF51250

51.2V

250Ah

12.80kWh

482X500X280mm

100kgs


Support OEM/ODM Service

* Customize Battery Size/ Color/ Logo, etc.

* Customize Battery Capacity, Working Current;

* Customize Battery Connector/ Charger

* Customize Bluetooth APP


Support Max. 4PCS in Parallels

If without master control, it support max. 4pcs in parallels connection for highest 38.4Kwh battery system;

If with standard master controls, it can be paralleled and serialed with more batteries.


Easy Stack Installation

We can provide the install racks and just to stack batteries. Save your hundreds of $ dollars to buy battery cabinet. There is a lot

of space between the batteries, better for heat dissipation.

Racked Mounted ESS 1.jpg

Rack mounted battery and system.jpg


BMS Functions:

HiPOWER BMS.JPG


Matched Inverter Brands:

Matched Inverter Brands.jpg



Application Scenarios:

HiPOWER Battery Applications.JPG


Certifications:

HiPOWER Certification.JPG



Shenzhen High Power Battery Technology Company is dedicated to the R&D, manufacturing and sales of motive power systems and energy storage systems as one-stop solutions. With more than 10 years of combined experience in manufacturing renewable energy and battery systems, HiPOWER provides Lithium Batteries covering most daily living and working fields. Our products include two main series, which are

1.   Energy Storage Batteries & Systems

LiFePO4 Battery for Lead Acid Replacement

RV/Caravan/Camper/Marine/Solar Battery

Rack-mounted Lifepo4 Battery

Wall-mounted Lifepo4 Battery

All-In-One Energy Storage System

Portable Power Station

Low Voltage Energy Storage System

High Voltage Energy Storage System

Commercial & Industrial ESS

2.   Motive Power Batteries

Golf Cart Battery

Floor Cleaner/Scrubber Battery

Forklift Battery

Aerial Work Platform Battery

E-bike Battery

E-scooter/motorcycle/tricycle Battery

Starter Battery

Shenzhen High Power Battery Technology Co., Ltd, is a professional and reliable Hi-tech manufacturer of lithium battery and energy storage products. HiPOWER headquarter located in Shenzhen, owns two factories, one in Shenzhen with area over 7000 m² and more than 200 employees, another one in Huizhou City with area more than 10000 m² and more than 250 employees. HiPOWER owns and operates automatic production lines, a full range of test equipment and an advanced MES that collectively address all aspects of its manufacturing process, from electronics, software design to module assembly, battery assembly as well as initial and final testing.

As a renewable energy innovator, HiPOWER is committed to the mission of achieving energy sustainability while creating a better life for human beings. We have always adhered to the concept of innovation and customer-oriented development, environmental protection and green development. We will continuously enhance our innovation ability, outstanding production capacity and increasingly perfect delivery ability to deepen the cooperation with customers all over the world.



HiPOWER Factory Assembly Lines.JPG12.jpg

Packing Shipping Payment.JPG
