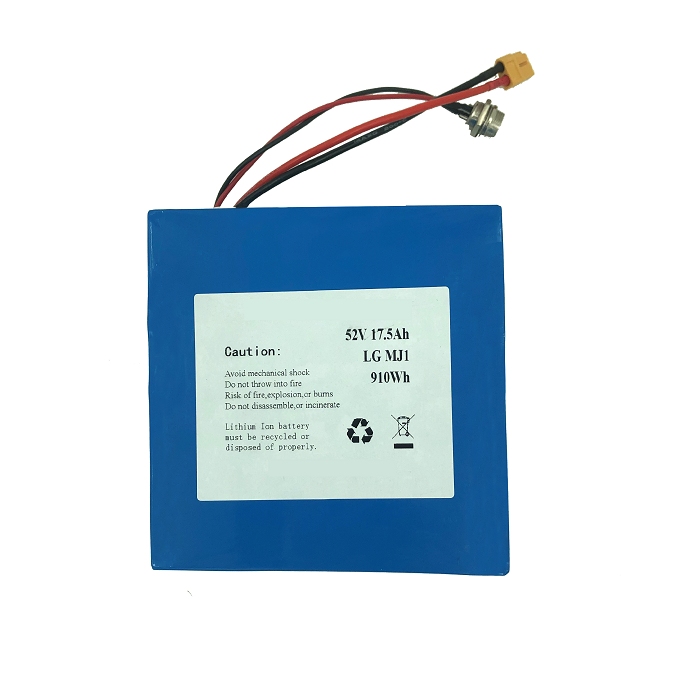

Customized Li-ion 48V 17.5Ah 52V 14S5P for Electric Scooter E-bike

Model: Li-Ion Battery 48V 17.5Ah
Configuration: 14S5P
Nominal Voltage: 51.8V
Nominal Capacity: 17.5Ah
Energy: 906.5Wh
Charge Voltage: 58.8V
Charge Current: 9A max.
Max. Continuous Working Current: 20A or customized
Peak Discharge Current: 40A
Fit Motor Power: 800W max.
Dimensions: 250*150*160mm or Customized
Weight: 3.9kgs
Cycle Life: 800 Cycles

EMAIL

Customized Lithium Ion Battery Pack 48V 17.5Ah 52V 14S5P with SAMSUNG LG Cells for Electric Motorbike E-scooter E-Mobility


Specification:

Model

Li-Ion Battery 48V 15Ah

Product Parameters

Battery Cell

Grade A 18650 power cells, Chinese big brands or Samsung, LG

Nominal Voltage

51.8V

Nominal Capacity

15Ah

Energy

906.5Wh

Charge Voltage

58.8V

Charge Current

9A (Max.)

Charge Method

CC/CV

Working Voltage Range

42V - 58.8V

Max. Continuous Discharge Current

20A or Customized

Peak Discharge Current

40A

BMS Protections

Over charge, over discharge, over current, short circuit and   temperature protection

Housing

PVC Wrapped or Customized

Connector & Cables

XT-60/GX16, or Customized

Dimension

250*150*160mm or Customized

Weight (Approx.)

3.9KGS

Charge Temperature

 0 to 45 (32F to 113F) @60±25% Relative Humidity

Discharge Temperature

 -20 to 60 (-4F to 140F) @60±25% Relative   Humidity

Storage Temperature

 -20 to 45 (-4F to 113F) @60±25% Relative   Humidity

Cycle Life

800+ Cycles

Motor Power

800W Max.

Applications

Electric Scooter, Motorbike, E-mobility, etc.


Features of HiPOWER Lithium EV Batteries:
1. Lighter weight, smaller size.
2. Can be customized, install easily.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Large capability and long life for all high power output applications.
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.

9. Low self-discharge and good discharge performance at low temperature.


Factory Lithium Battery Test:

HiPOWER' Battery Packs and Battery Cells are tested before delivery to ensure excellent quality and safety.

Test Item

Test Findings

Over Charge Test

NO FIRE,NO EXPLOSION

Over Discharge Test

NO FIRE,NO EXPLOSION

Drop Impact Test

NO FIRE,NO EXPLOSION,NO LEAKAGE

Short Circuit Test

NO FIRE,NO EXPLOSION

Crush Test

NO FIRE,NO EXPLOSION

High Temperature Test

NO DEFORMATION,NO LEAKAGE

Needle Puncture Test

NO FIRE,NO EXPLOSION
