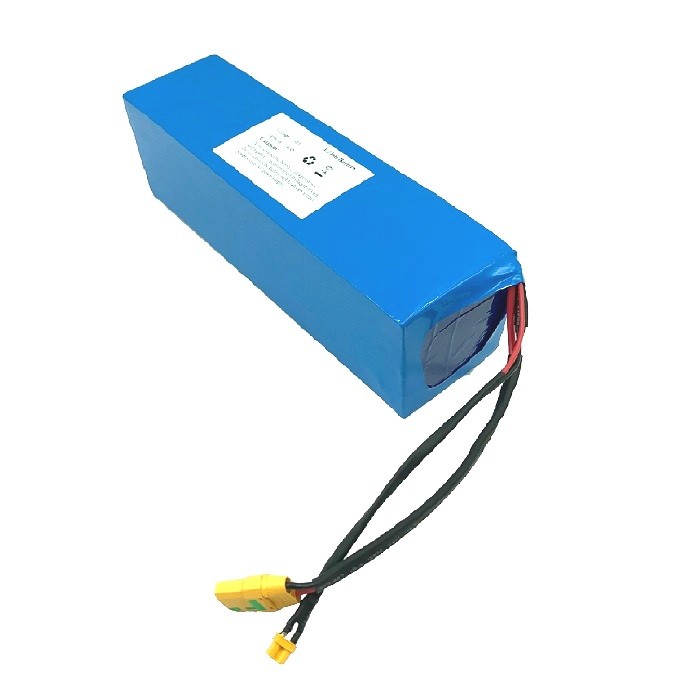

Customized E-bike Battery 48V 14A 13S4P with Charger 3A

Customized E-bike Battery 48V 14A 13S4P with Charger 3A

Model: Li-Ion Battery 48V 14Ah
Configuration: 13S4P
Nominal Voltage: 48V
Nominal Capacity: 14Ah
Energy: 672Wh
Charge Voltage: 54.6V
Charge Current: 7A max.
Max. Continuous Working Current: 25A or customized
Peak Discharge Current: 50A
Fit Motor Power: 720W max.
Dimensions: 260*77*75mm or Customized
Weight: 2.9kgs
Cycle Life: 800 Cycles

Customized Lithium Ion Battery Pack 48V 14Ah 13S4P Samsung 35E 18650 3500mAh with Charger for Electric Bicycle E-scooter E-Mobility

Specification:

Model	Li-Ion Battery 48V 14Ah
Product Parameters
Battery Cell	Grade A 18650 power cells, Chinese big brands or Samsung, LG
Nominal Voltage	48V
Nominal Capacity	14Ah
Energy	672Wh
Charge Voltage	54.6V
Charge Current	7A (Max.)
Charge Method	CC/CV
Working Voltage Range	39V - 54.6V
Max. Continuous Discharge Current	25A or Customized
Peak Discharge Current	50A
BMS Protections	Over charge, over discharge, over current, short circuit and temperature protection
Housing	PVC Wrapped
Connector & Cables	Pin Plug, or Customized
Dimension	2607775mm or Customized
Weight (Approx.)	2.9KGS
Charge Temperature	0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
Cycle Life	800+ Cycles
Motor Power	720W Max.
Applications	E-bike, E-scooter, E-mobility, etc.

Features of HiPOWER Lithium EV Batteries:
1. Lighter weight, smaller size.
2. Can be customized, install easily.
3. Extremely safe, no explosion, no fire under collision.
4. Strong over-discharge resistance and charge retention.
5. Strong charging acceptance and quick-charging capability.
6. Maintenance-free and no acid or water for maintenance in usage.
7. Large capability and long life for all high power output applications.
8. Environmentally friendly non-toxic, non-contaminating, no rare metal.

9. Low self-discharge and good discharge performance at low temperature.

Factory Lithium Battery Test:

HiPOWER' Battery Packs and Battery Cells are tested before delivery to ensure excellent quality and safety.

Test Item	Test Findings
Over Charge Test	NO FIRE,NO EXPLOSION
Over Discharge Test	NO FIRE,NO EXPLOSION
Drop Impact Test	NO FIRE,NO EXPLOSION,NO LEAKAGE
Short Circuit Test	NO FIRE,NO EXPLOSION
Crush Test	NO FIRE,NO EXPLOSION
High Temperature Test	NO DEFORMATION,NO LEAKAGE
Needle Puncture Test	NO FIRE,NO EXPLOSION
