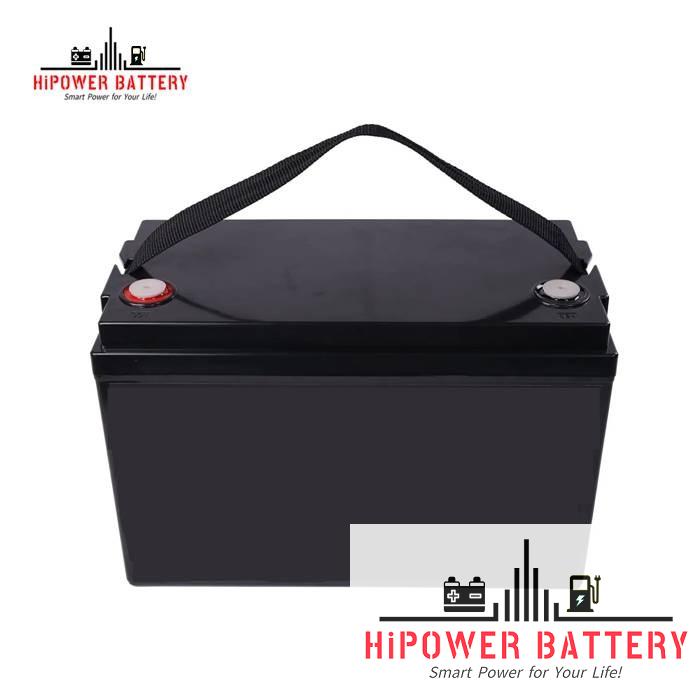

Best 12v 100ah deep cycle lifepo4 battery for solar panel

Nominal Voltage: 12.8V
Nominal Capacity: 100Ah
Energy: 1280Wh
Continuous Working Current: 100A
Peak Working Current: 280A
Cycle Life: 6000 Cycles
Dimensions: 329x172x214mm
Weight: 11 kgs
IP Class: IP65
Connection in Serials: Max. 4pcs
Connection in Paralels: Max. 4pcs
Bluetooth: Yes
Warranty: 5 to 8 Years

EMAIL

Specifications:


Battery Model: LiFePO4 Battery 12V 100Ah

Nominal Voltage: 12.8V

Nominal Capacity: 100Ah

Stored Energy: 1280Wh

Self-discharge Rate: < 3% /months

Efficiency of Charge: 100% @0.5C

Efficiency of Discharge: 96~99% @0.5C

Charging Voltage: 14.2-14.6V

Charging Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)

Standard Charging Current: 15A

Max Charging Current: 100A

Discharging Voltage: 10V-14.6V

Max. Continuous Discharging Current: 100A

Peak Discharging Current: 280A (<5s)

Discharge Cut-off Voltage: 10V±0.5V

Housing: ABS Plastic Case

Color: Black, or Customized

Dimension: 329x172x214mm (12.95x6.77x8.43inch)

Weight: About 11kgs (24.25lbs)

IP Class: IP65

Terminals: M8

Charge Temperature: 32℉ to 131℉(0℃ to 55℃)

Discharge Temperature: -4℉to 140℉(-20℃ to 60℃)

Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

Charge Temperature with Heating Function: -4℉to 131℉(-20℃ to 55℃) (Optional)

BMS High Temperature Cut-Off: 167 °F (75℃)

Reconnect Temperature: 122°F (50℃)

Cycle Life: >5000 cycles

Warranty: 5 to 8 Years


Applications:

1. A Ready Drop-in for SLA, AGM, VRLA, Lead Acid Replacement;

2. Telecom, Center Database, UPS, EPS Power Backup

3. Solar, Wind Energy Storage Systems;

4. On-Grid, Off-grid Power Supply;

5. DC Power Supply;

6. Auto Control Systems;

7. Residential, Commecial, and Industrial Energy Storage Systems;

8. Marine, Yacht, Boat, Trolling Motors, etc.

9. RV, Caravan, Motorhome, Camper, etc.

10. Other Customzed Applications.


HiPOWER LiFePO4 Lithium Batteries for Lead Acid Replacement

Advantages of LiFePO4 battery compared to lead acid batteries:

1). High discharge currents possible up to the specified capacity

2). The up to 60% lower weight means more payload is possible

3). Due to the smaller space requirement, more capacity can be carried in the same space

4). Up to 10 times longer service life thanks to the high number of cycles of LiFePO4 technology

5). Extremely fast charging of the cells possible

6). Complete discharge of the specified nominal capacity possible

7). The battery is protected by battery management (BMS).

8). The motorhome is charged using standard lead or acid chargers with a final charging voltage of 14.6V

9). The battery is winterproof and does not need to be removed down to -20°C

10). Delivered fully charged, install and drive off

11). As standard, the battery has M8 screw connections, which can optionally be equipped with our extra light pole adapters

12). No changes to the motorhome or additional electronics are required to use the battery

13). Due to the low self-discharge, a sealed battery can be stored for up to 6 months without any problems

14). For more capacity, you can connect as many batteries as you like in parallel

15). For more voltage you can connect up to 4 batteries (maximum 48V) in series
